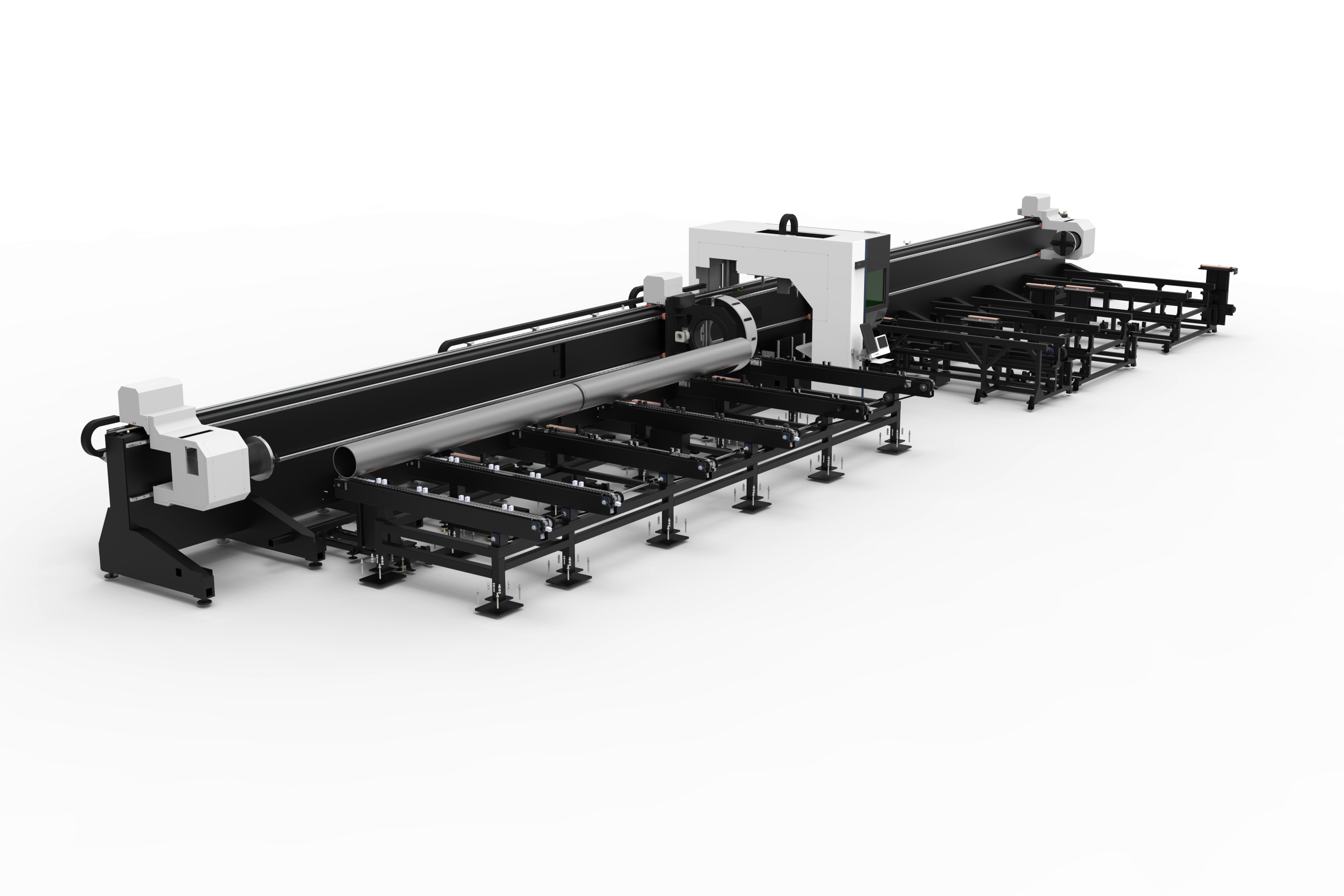

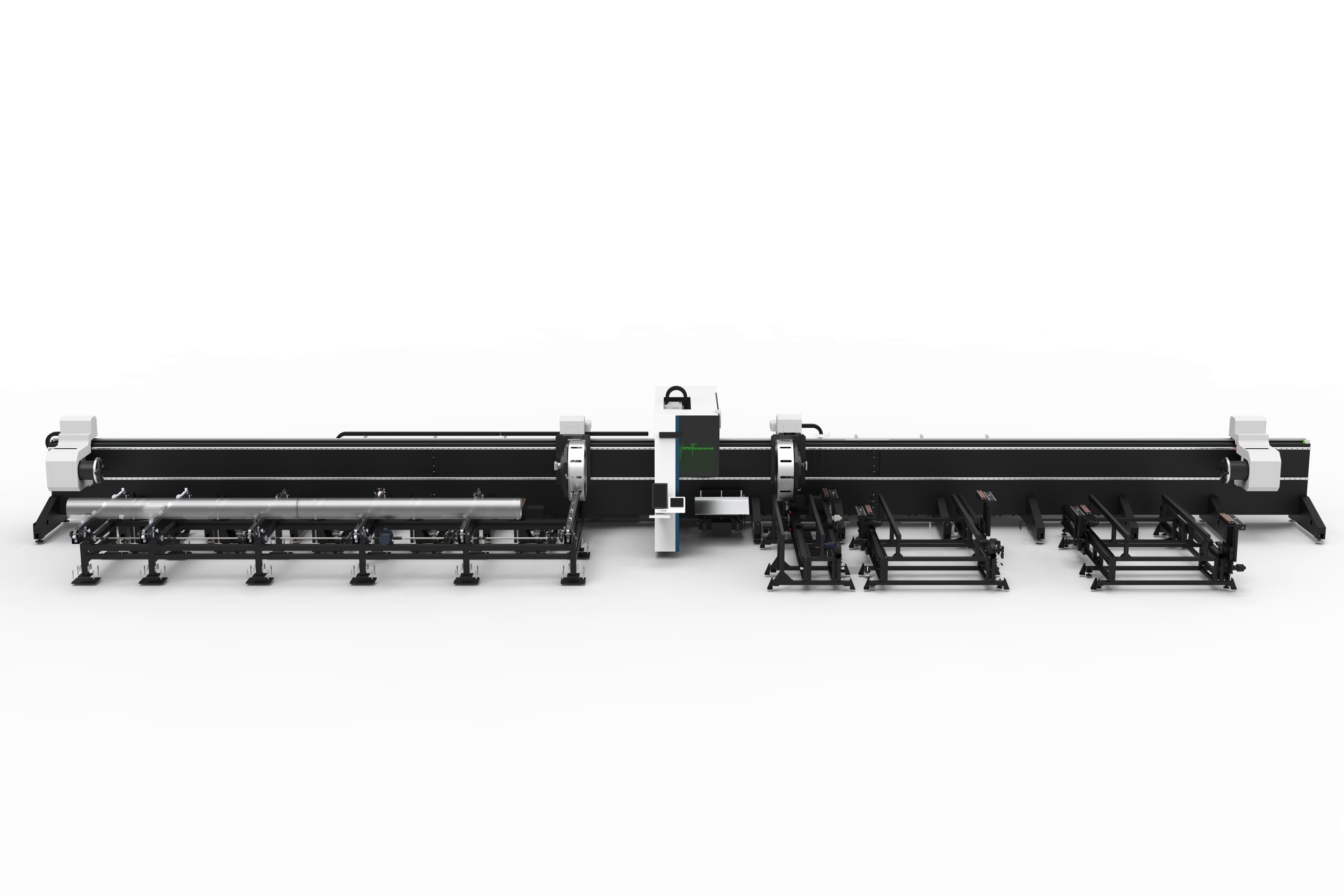

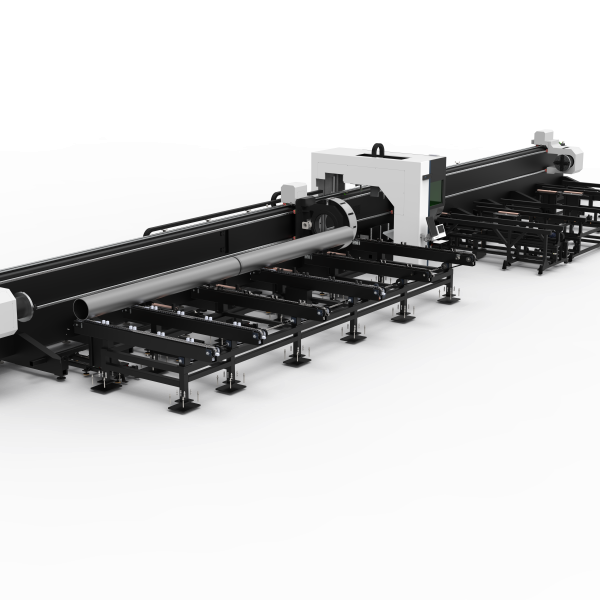

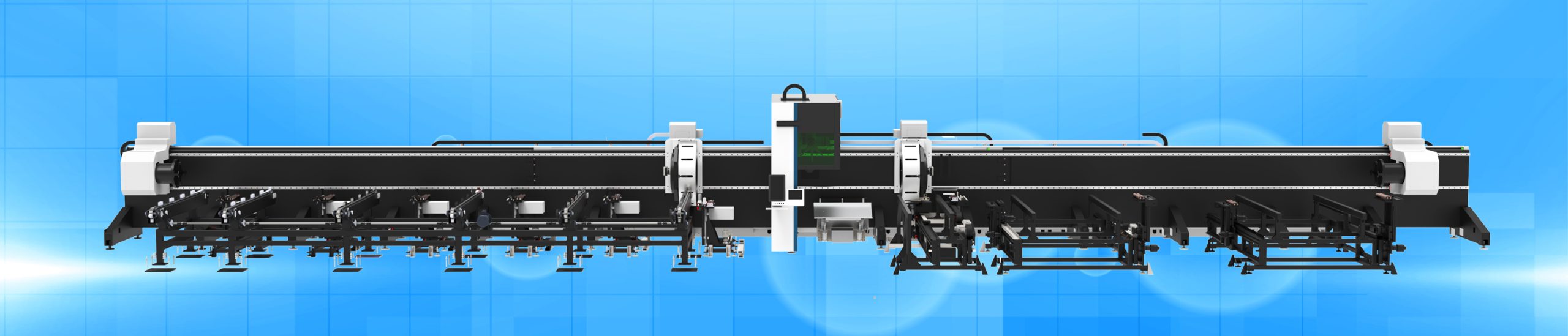

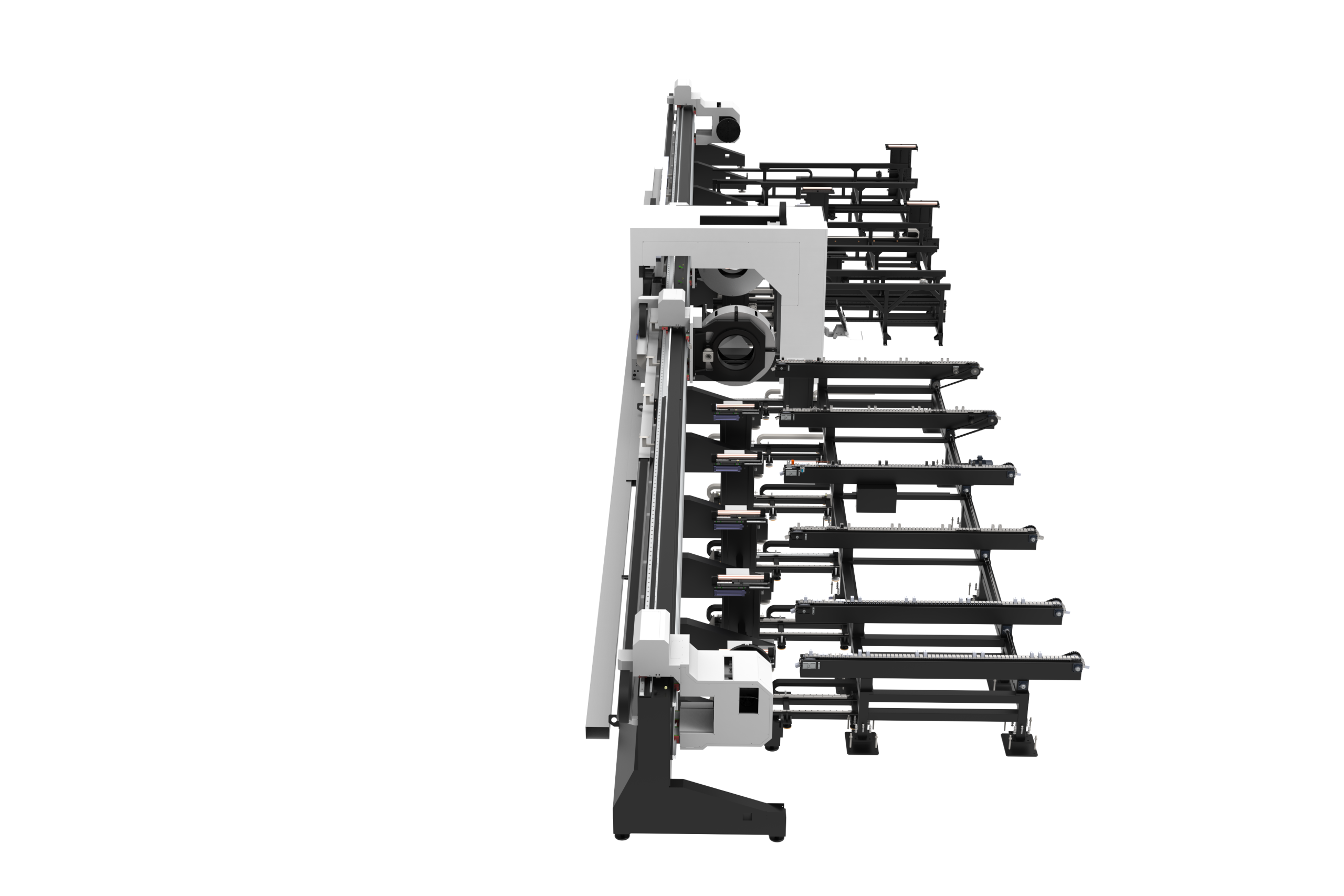

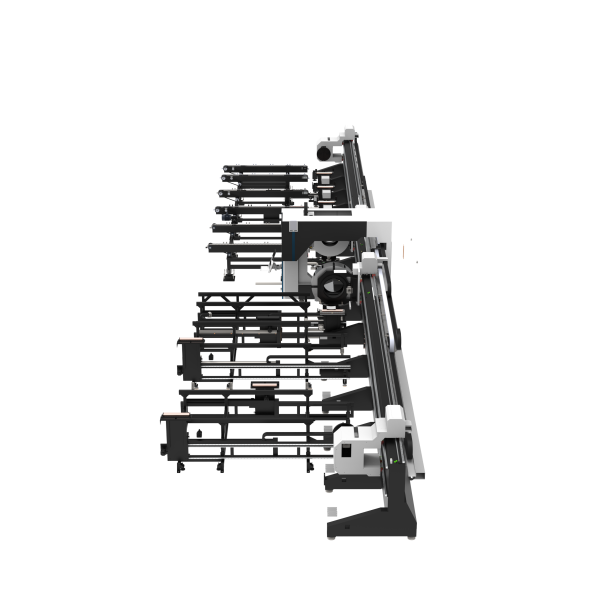

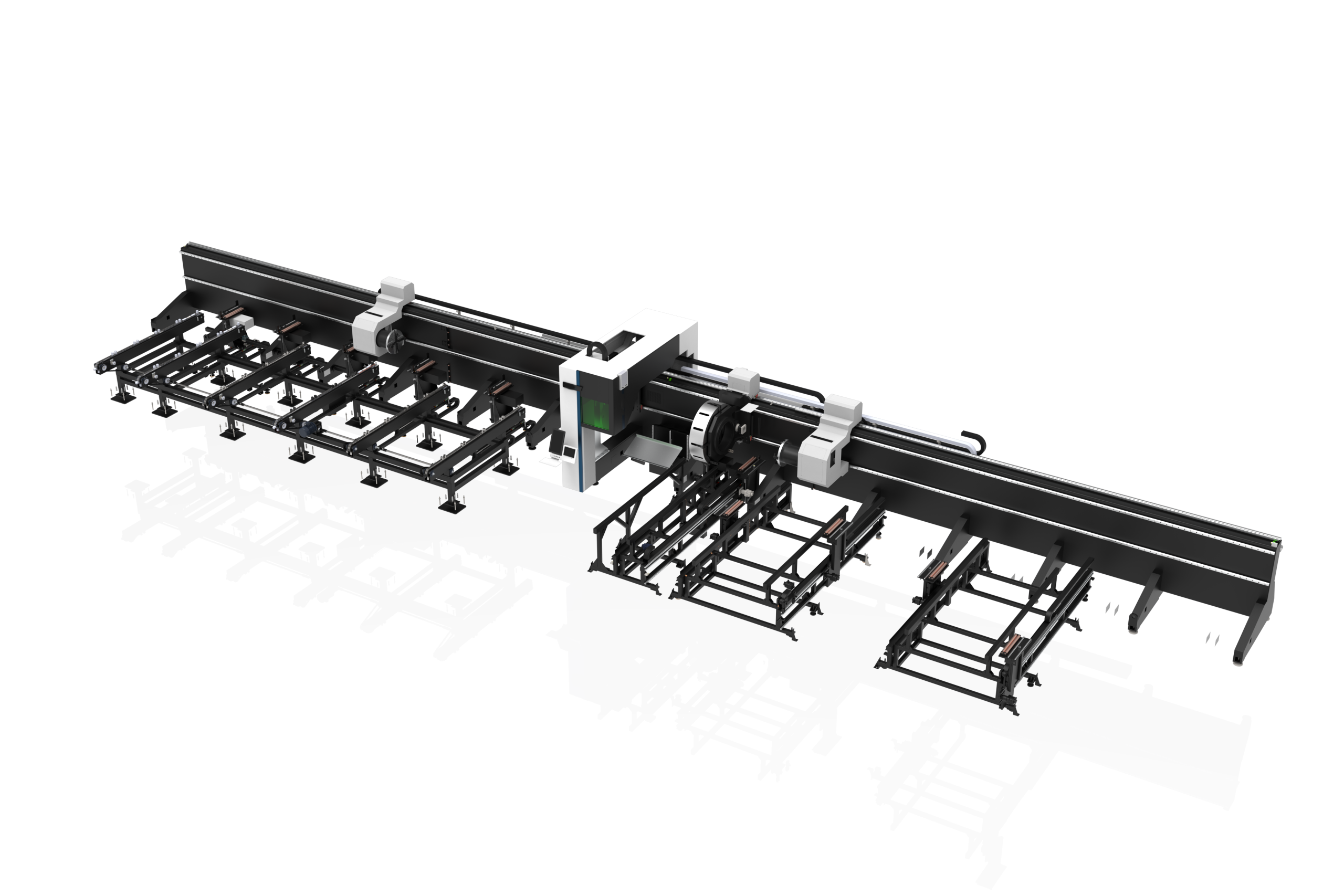

T4 Four Chuck Heavy Duty Fiber Laser Tube Cutter
Four chuck full stroke for more stable cutting
The four chucks are all positioned on the left side of the cutting head to jointly clamp the pipe,preventing sagging and bending of thin-walled pipes in the middle and ensuring high machining accuracy.
T4 Series Tube Laser Cutter Key Feature

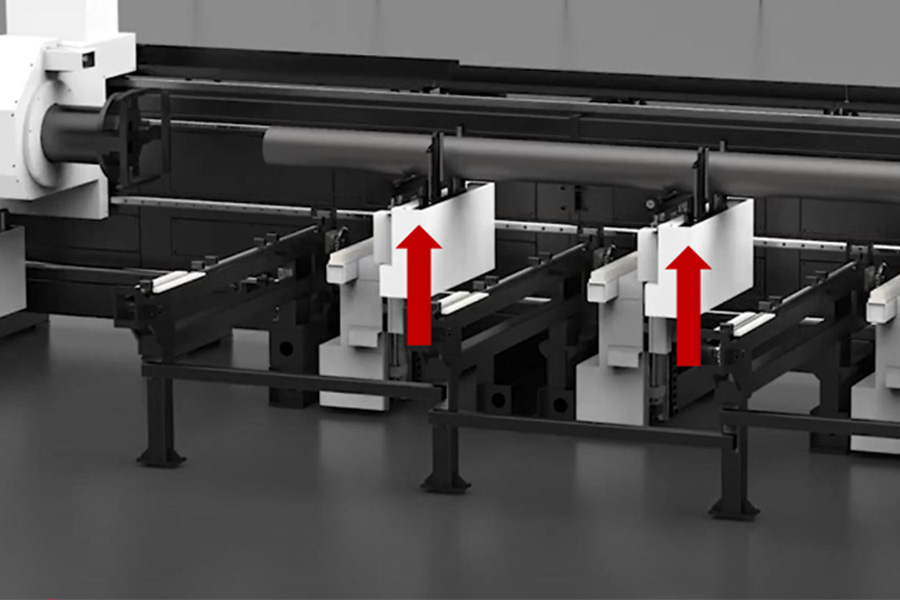

Servo Driven Follow Up Holders for Asymmetrical Workpieces
To make sure precise rotation and consistent cut geometry, the XUANLIN T4 series comes equipped with servo driven follow up holders which support the underside of the tube between chucks. These intelligent supports automatically raise up& down with the material as it rotates, keeping even the longest or most irregularly shaped profiles perfectly aligned and wobble free. This stability allows the chucks to maintain true axial spin, which is critical for high-tolerance cutting, especially on heavier and asymmetrical workpieces.

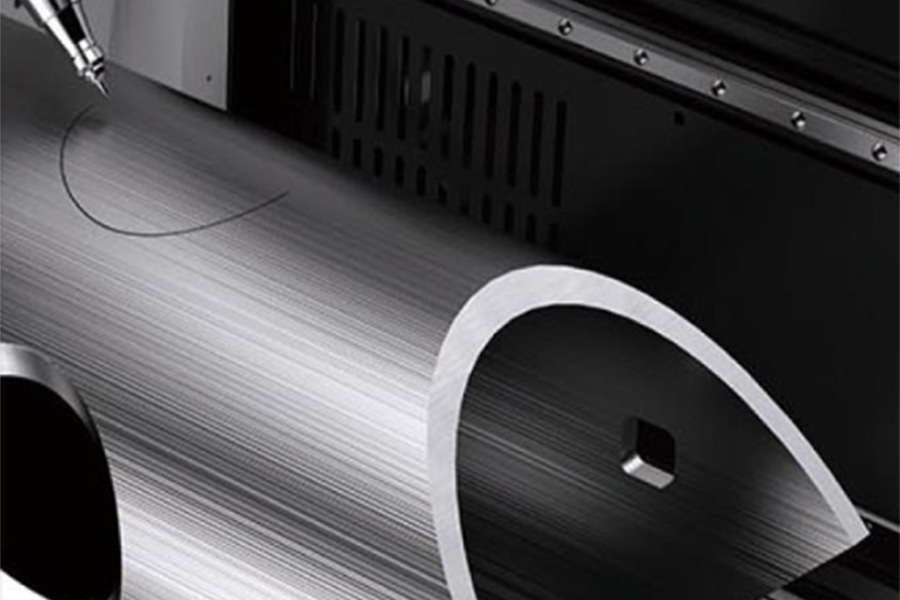

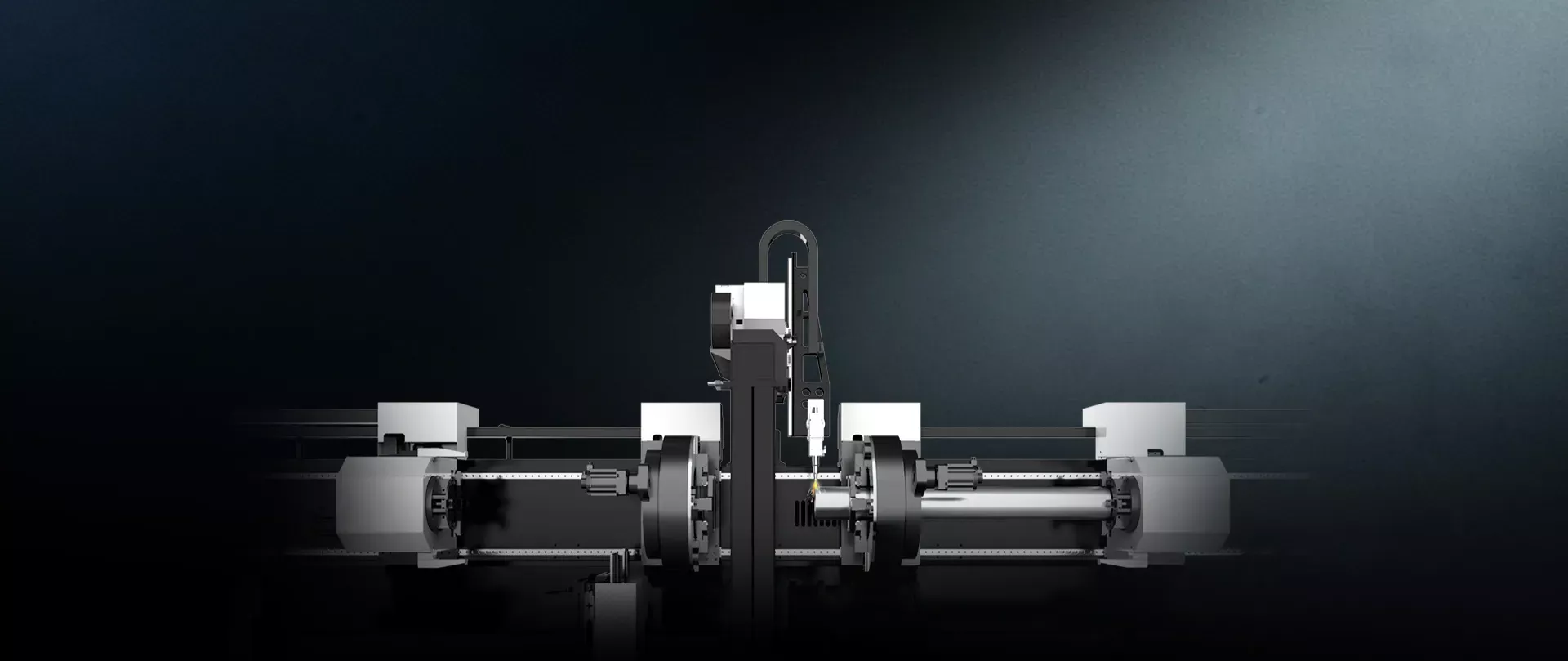

Static Laser Tube Cutting Feature to Improved Accuracy and Reduced Energy Consumption
The static cutting feature uses a small Y-axis to move the laser head rather than shifting the pipe itself. Though keeping the workpiece stationary, this design significantly reduces the fluctuations and vibrations that can occur when moving heavy and long tubes, resulting in improved cutting accuracy and clean edges. It also streamlines motion control, reducing energy consumption up to 60% , increasing cutting speed as much as 20%. The result is a faster, more efficient, and more precise cutting process, especially for large and delicate profiles.

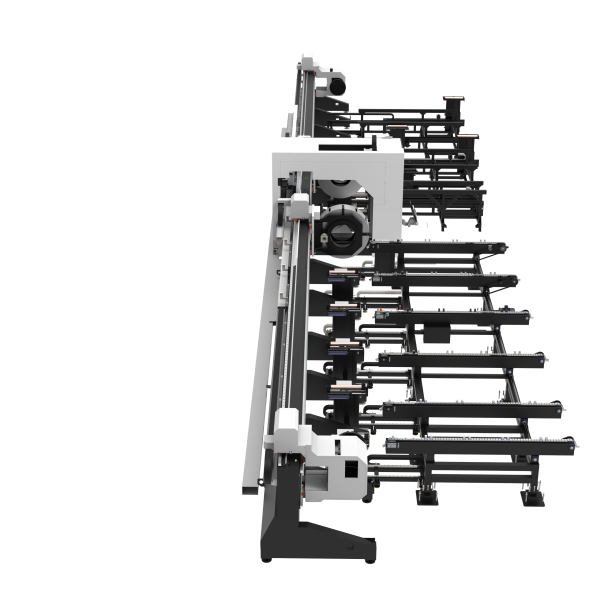

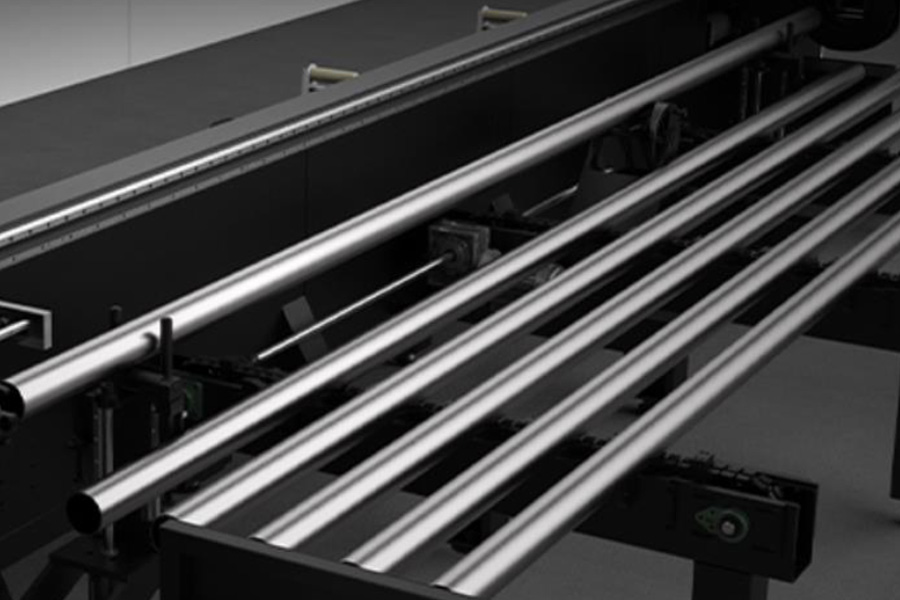

Loading and Unloading Automation for Safety and Productivity
Both semi-automatic and fully automatic loading options enhance safety by reducing the need for manual lifting and positioning of long and heavy tubes. They also contribute to
be more consistent material alignment, which improves cut quality and reduces handling errors. An optional automatic unloader is also available, streamlining the discharge of
finished parts and reducing bottlenecks at the end of the process. Together, these automation upgrades help boost productivity, protect your team, and keep your operation
running smoothly from start to finish.

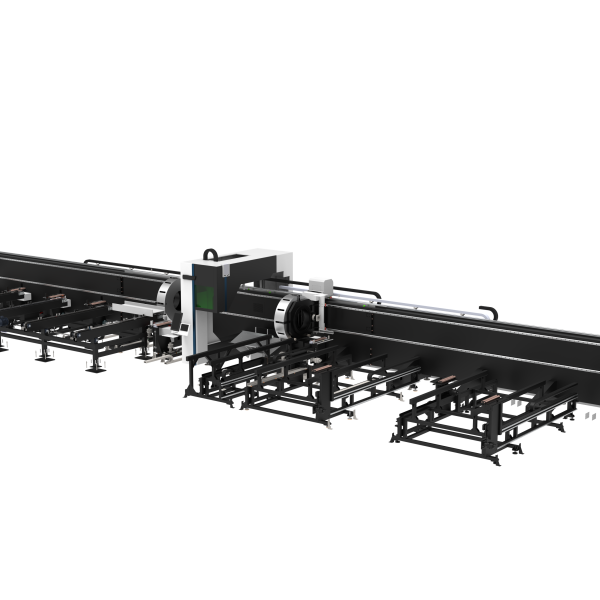

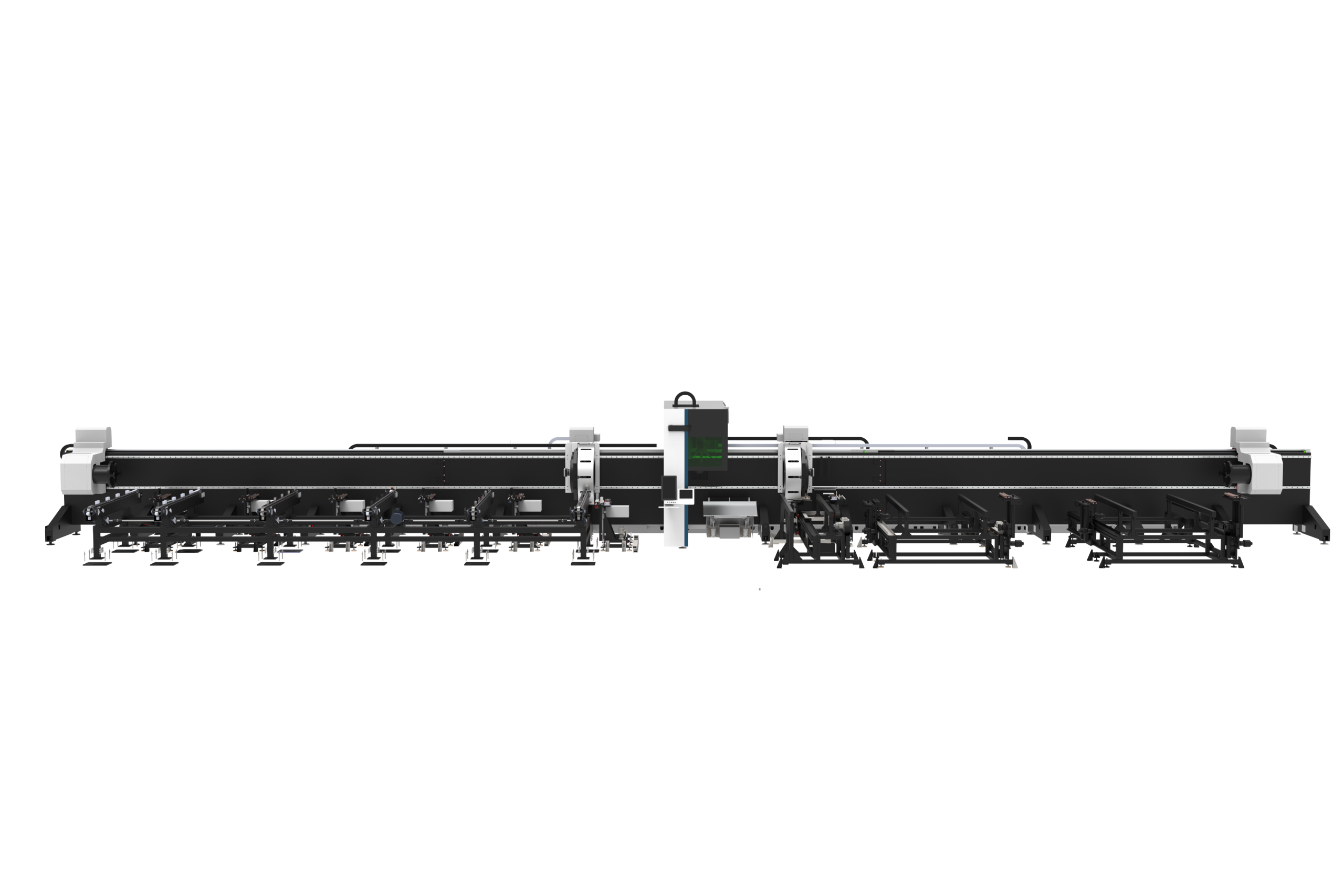

T4 series Four Chuck Systems for Unmatched Holding Power
The T4 series tube cutter features a 4-chuck system that improves grip stability and minimizes deflection over 2-chuck setups, while the T4 adds a 4th chuck for zero tailing on even the largest tubes. Choose from nine heavy duty, full stroke chucks, each with an eight cylinder, double roller design that delivers twice the clamping force of standard systems for unmatched holding power and cut precision.

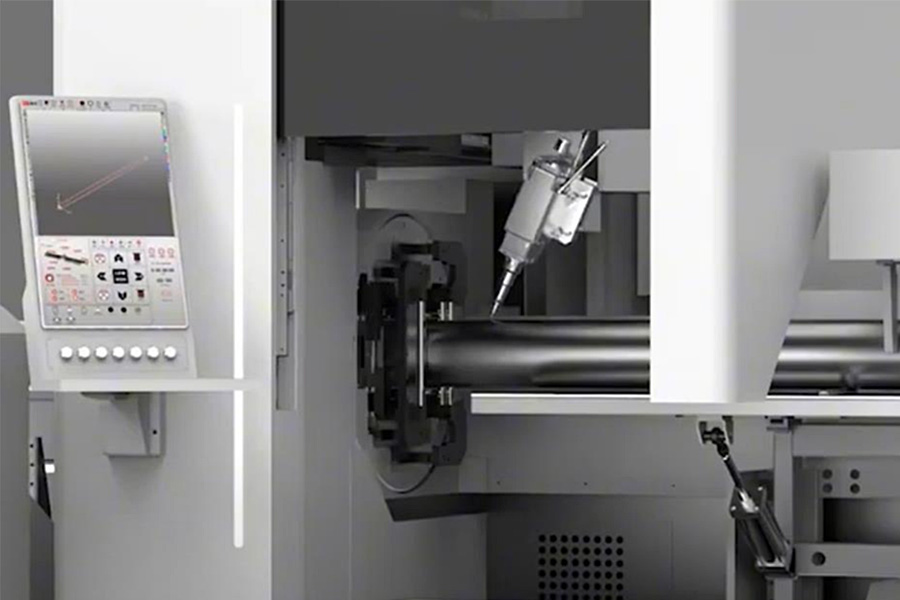

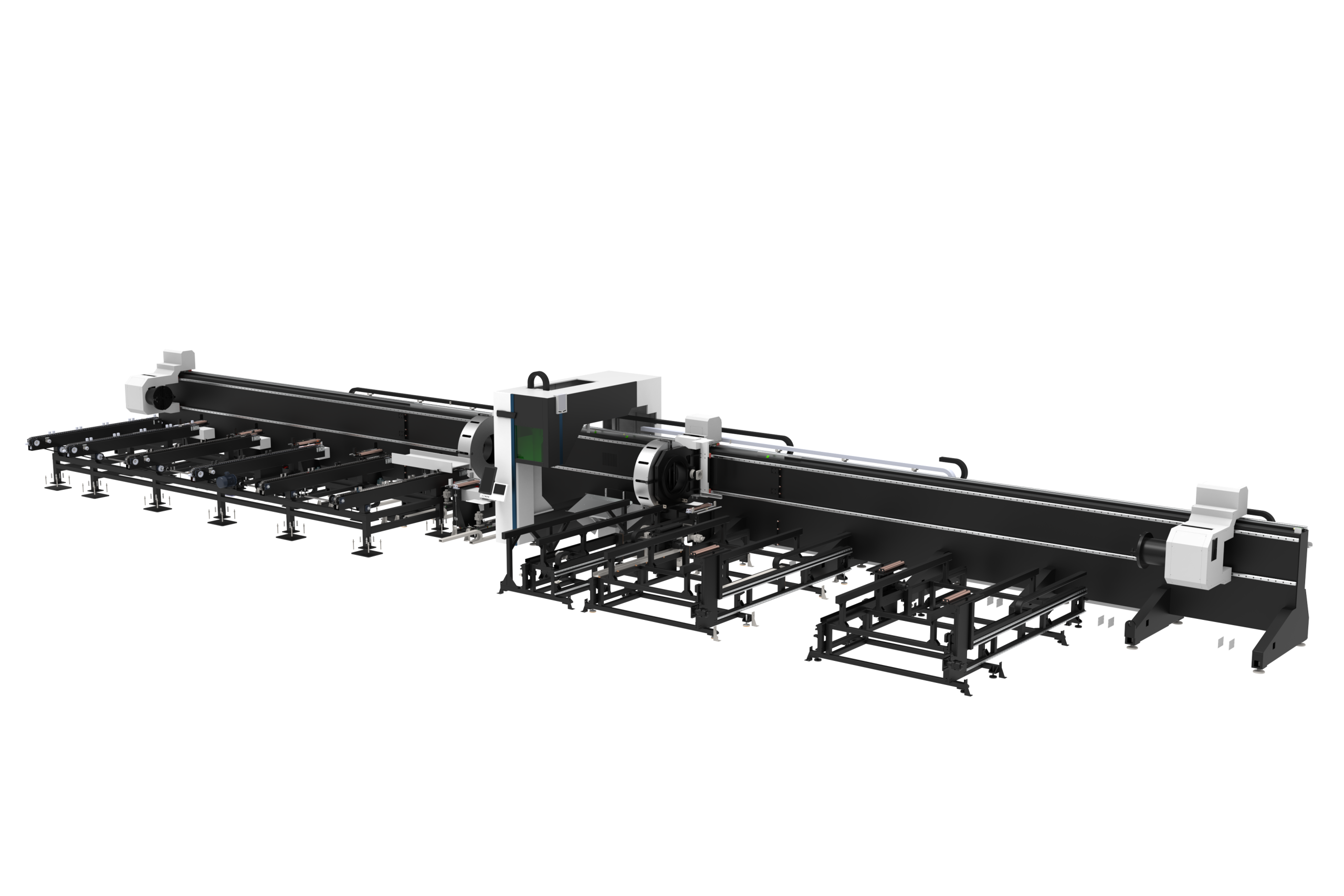

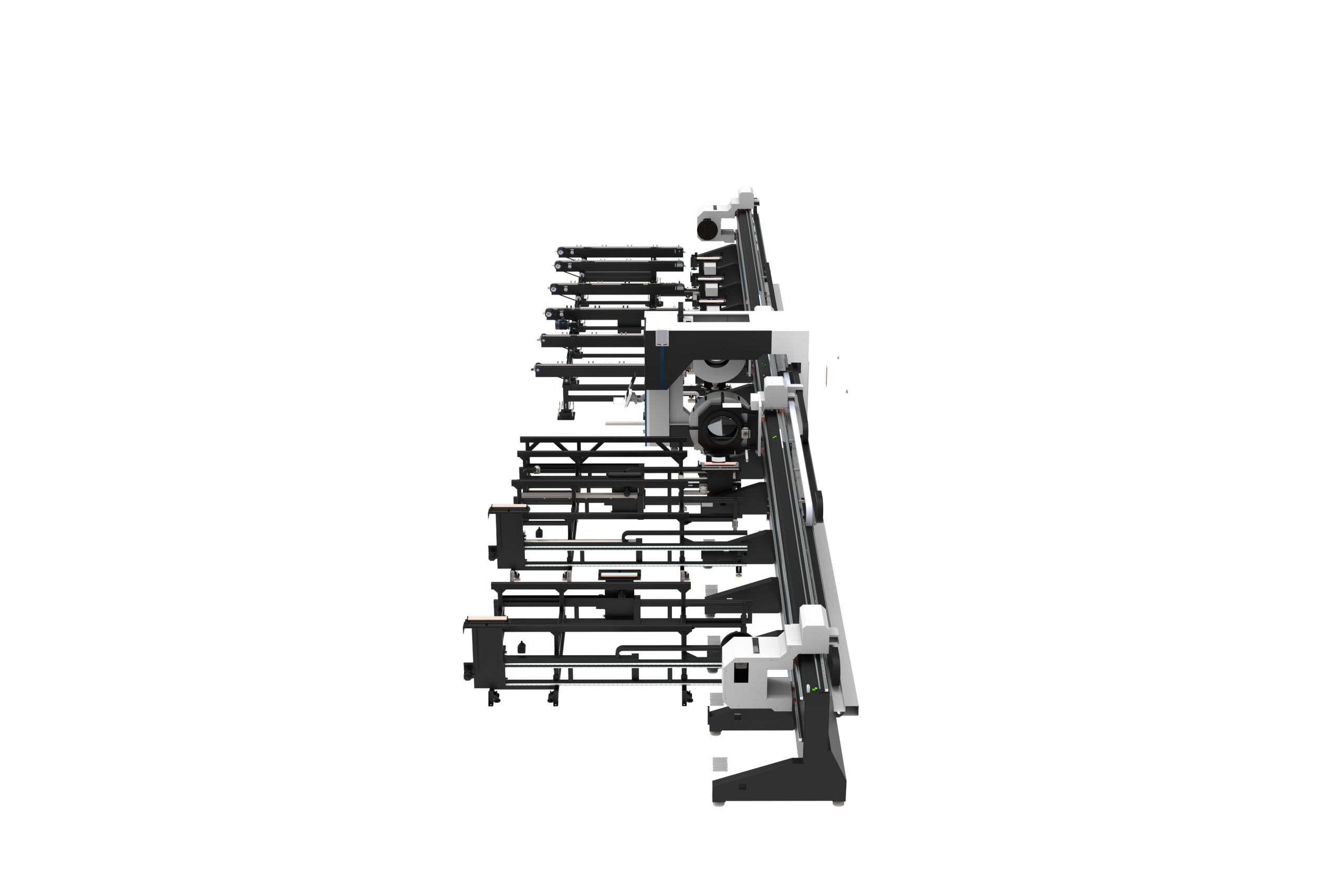

Bevel Laser Cutting for Complex Joints
With optional bevel cutting capabilities up to 45 degrees in V, X, Y, and K configurations, the T4 series transforms how you approach weld prep and part fit up. This feature allows you to cut complex joints directly on the laser, reducing the need for secondary machining or manual grinding. Whether you’re preparing structural components, pressure vessels, or custom fabrications, bevel cutting improves joint quality, weld penetration, and overall assembly efficiency.
T4 Series Tube Laser Cutter Key Configuration Feature

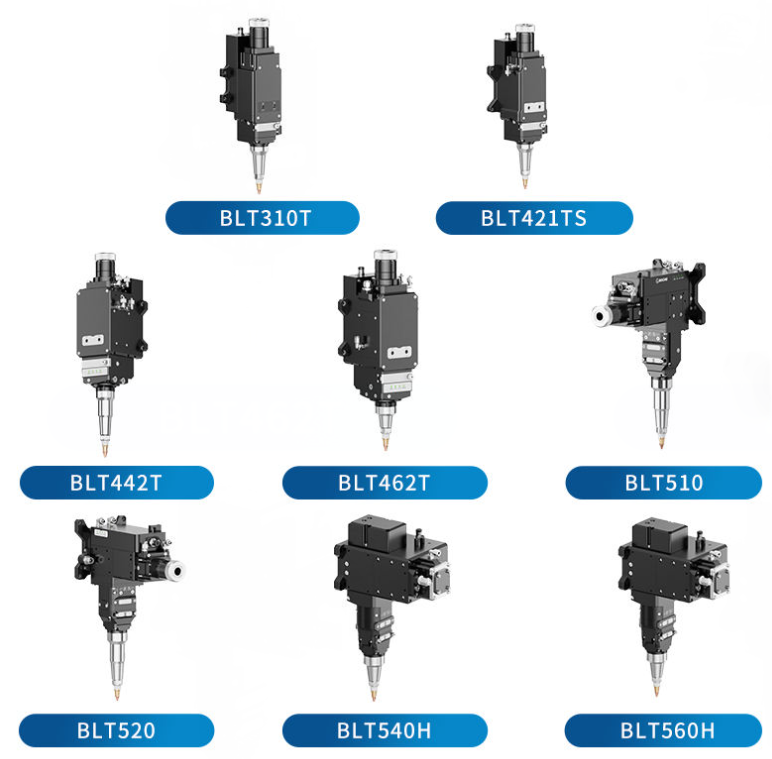

BOCI Brand Laser Cutting Head
Boci laser cutting head is built for precision, efficiency, and durability, making it is a
standout choice for high performance laser cutting. Featuring advanced autofocus,
the BOCI head automatically adjusts cutting height, cleaning, consistent results
across materials. Its breakaway design protects the head from collisions, reducing
the risk of damage and downtime
CypCut Software
CypCut software is a powerful, easy use solution designed specifically for fiber laser
cutting. An intuitive interface ensures a seamless workflow for operators of different
skill levels. CypCut supports .DXF files, advanced nesting functions, automatic path
optimization, and real-time monitoring. Its one click edge-finding and auto-focus
control, reduce setup time and improves precision. With customizable settings, users
can fine tune cutting parameters for different materials and thicknesses with ease.

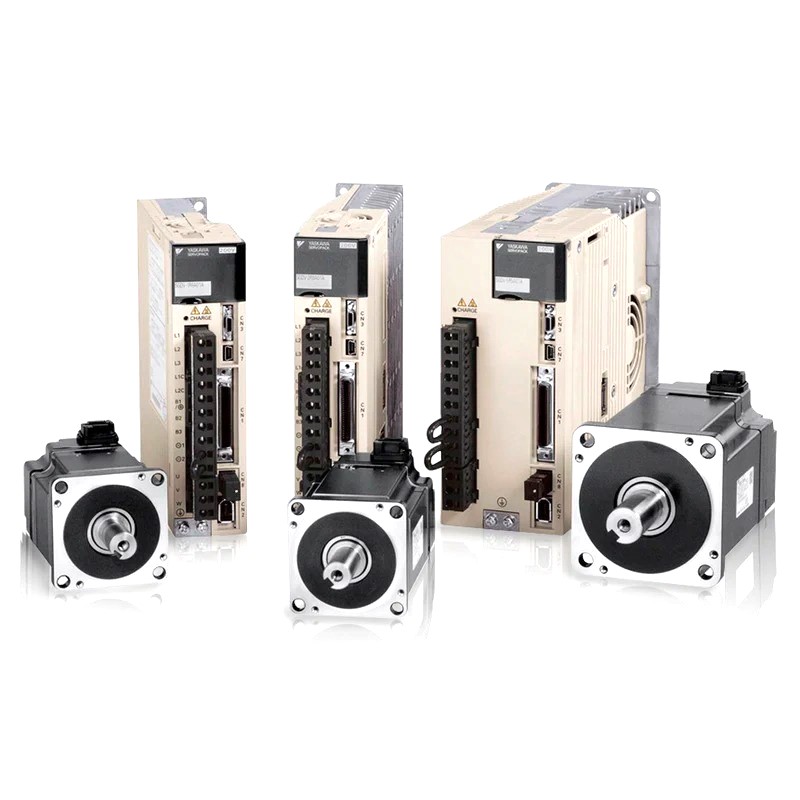

Yaskawa servo motors
ensure fast response times and smooth motion control, ensuting percise cutting, even at high speeds. Its advanced feedback system enhances accuracy, while the durable, high quality build guarantees long term reliability. Engineered for seamless integration and optimal energy efficiency, it also maximize productivity while minimizing downtime.

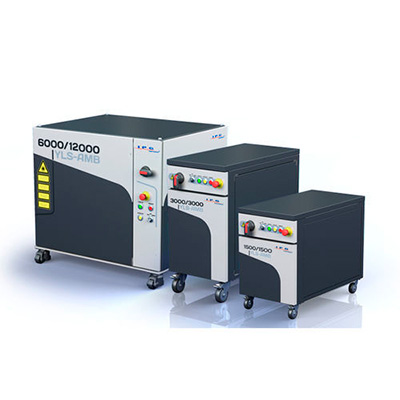

Optional Famous Brand Laser Source
The gold standard in laser performance, IPG sources deliver consistent power, exceptional cut quality, and unmatched reliability. Their robust design minimizes maintenance, ensuring uninterrupted operation even in the most demanding industrial environments.
A smart, budget-friendly alternative, Max Photonics and Raycus Max offer stable power output, excellent cut quality, and proven durability. It’s a dependable choice for operations that want efficiency and performance without the premium price tag.

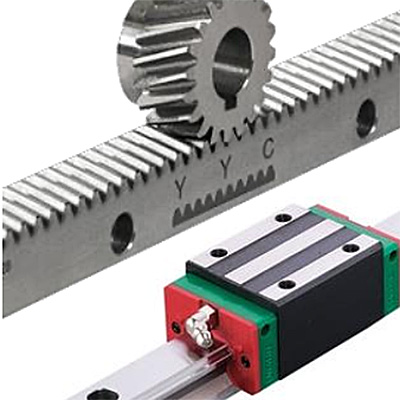

Hiwin Linear Guiderails YYC Rack and Pinions
Hiwin’s smooth, low-friction motion ensures accurate positioning and consistent performance, even at high speeds, while its rigid construction enhances longevity and reduces maintenance. Complementing this, YYC’s hardened rack and pinion system provides high-speed, backlash-free movement, ensuring clean, precise cuts with every pass. Built from high-quality materials, both components maximize efficiency, reliability, and cutting accuracy, making them essential for any precision-driven laser cutting operation.

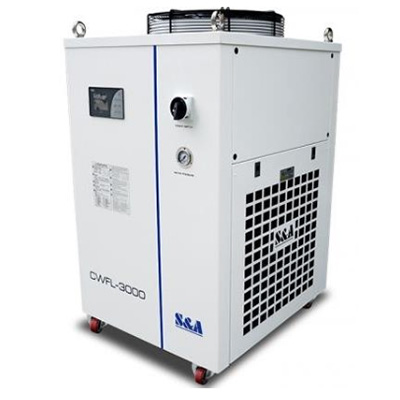

S&A Water Chiller
S&A water chillers are engineered for efficient and reliable cooling, ensuring optimal performance. Designed with dual-circuit cooling, these chillers provide precise temperature control for both the laser source and optics, preventing overheating and maximizing efficiency. With intelligent temperature regulation, high energy efficiency, and a durable, low-maintenance design, the CWFL series keeps your laser running smoothly even under heavy workloads.
Technical Parameter
| Model: | XL-6035T4 | XL-12036T4 | XL-12045T4 | XL-12052T4 | XL-12055T4 | XL-12063T4 | XL-12085T4 |
| Machine working area | 6000*240mm | 12000*360mm | 12000*450mm | 12000*520mm | 6000*350mm | 12000*630mm | 12000*850mm |
| Laser source brand: |
MAX /Raycus (Optional) |
||||||
| Fiber laser power: |
6KW/12KW/20kw/30kw/40kw/60kw (Optional) |
||||||
| X and Y positioning accuracy : |
±0.03mm |
||||||
| Max acceleration : |
1.0G |
||||||
| Rated voltage and frequency : |
380V/50Hz/60Hz |
||||||
| Operating temperature: |
0℃-40℃ |
||||||
| Control system: |
Cypcut |
||||||

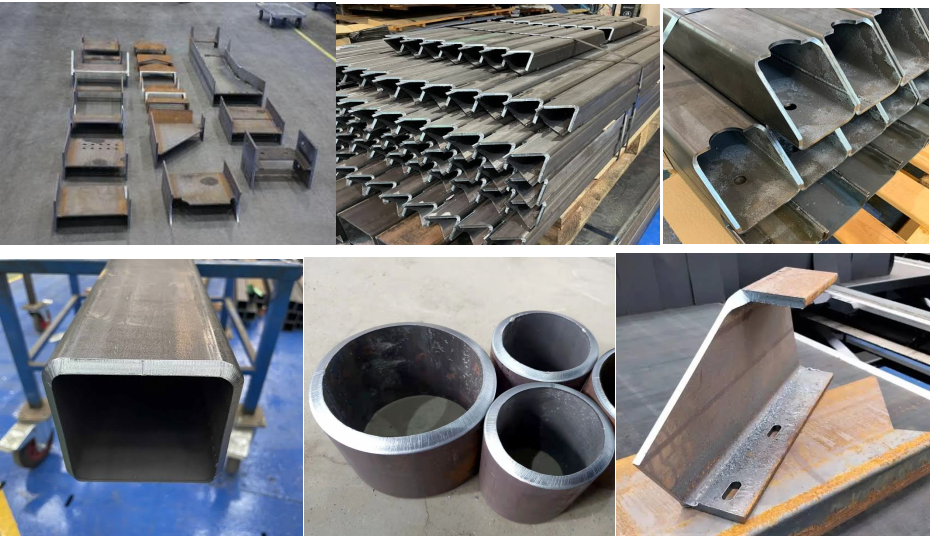

Sample Display
Application Industries
Laser tube cutters are used in the HVAC industry to produce precise duct work components, frames, brackets, and piping assemblies of different diameters. Cutting handrails, pipe fittings, and custom tubular profiles.In the renewable energy sector, laser tube cutters are used to manufacture precise, durable components for solar panel mounts, wind turbine frames, and support structures. Processing stair rails, beams, trusses, and architectural profiles with speed and consistency.
