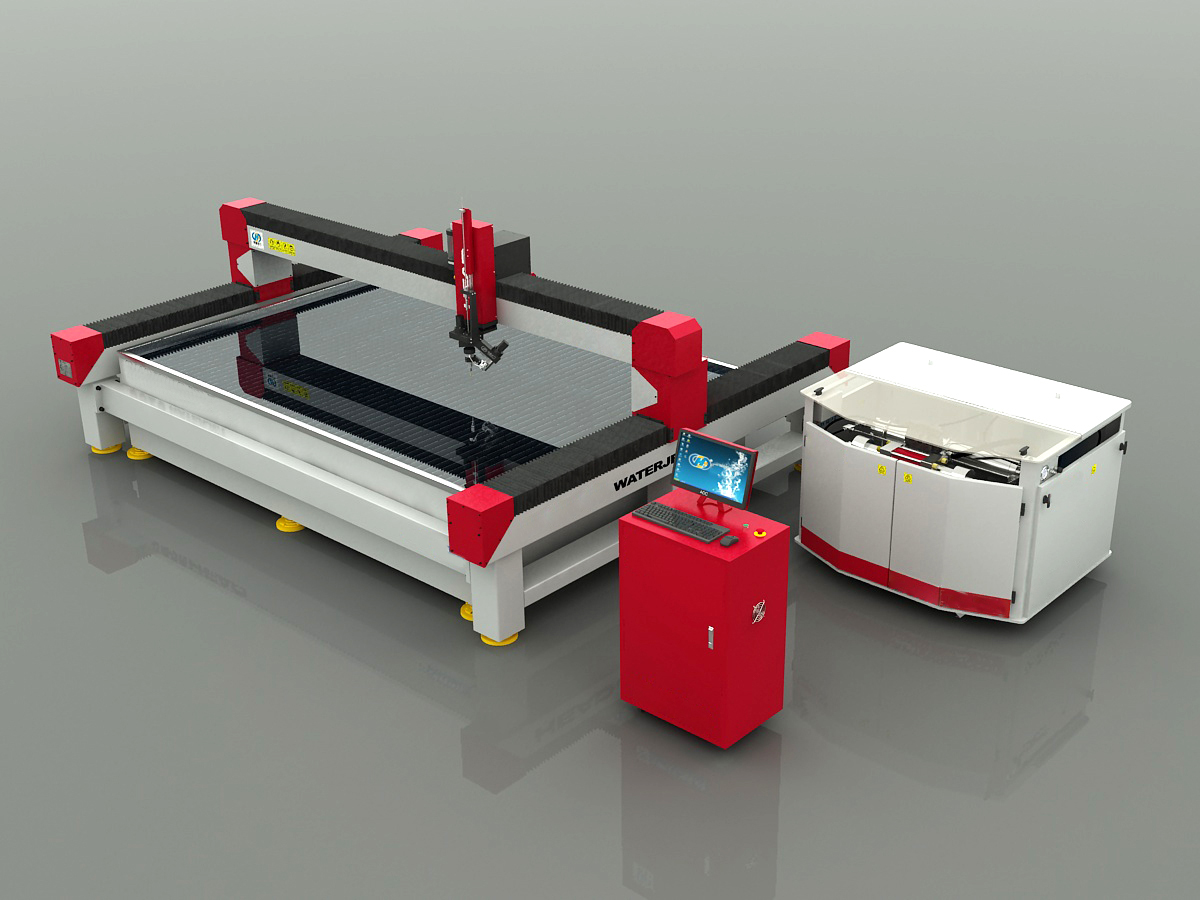

XL3020AC  5 Axis Water Jet Cutting Machine

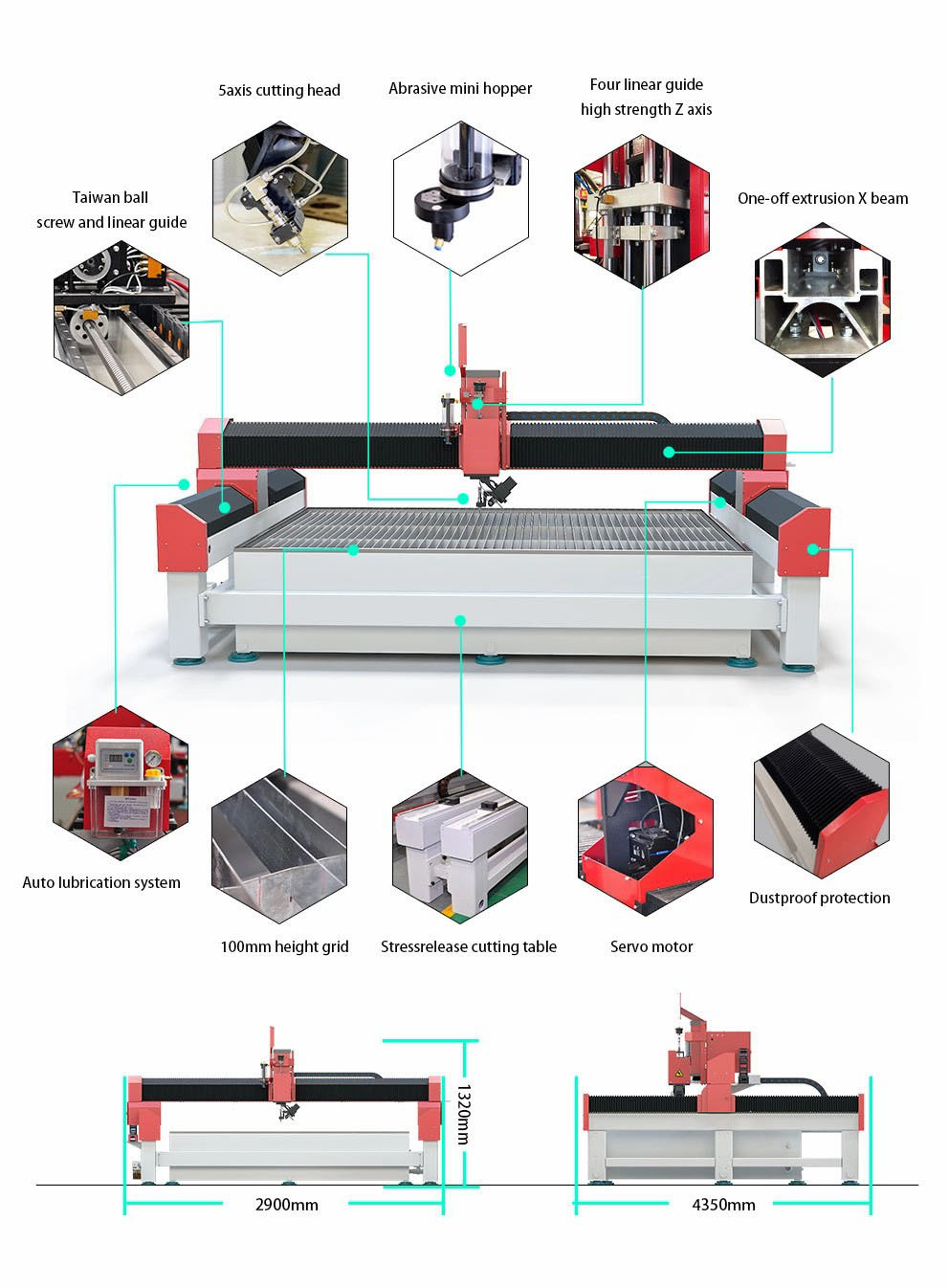

Main Feature of Machine

Perfect Bellows Protection:  A fully sealed, internally sloped design eliminates water and debris buildup, preventing corrosion and dramatically extending the machine’s lifespan.

Excelent Cutting Accuracy:  Reinforced guide rails with high-rigidity press blocks ensure superior stability, delivering consistent, micron-level precision on every cut.

Rapid Easy Maintenance Design:  An integrated cable management system and external abrasive hose with quick connect fittings allow for faster diagnostics and tool-free parts replacement, reducing downtime.

Eco-Friendly Oil Recovery:  The directional lubrication, oil recovery system prevents contamination, which ensures work environment clean reducing operational cost.

Main Parts Showing of Machine

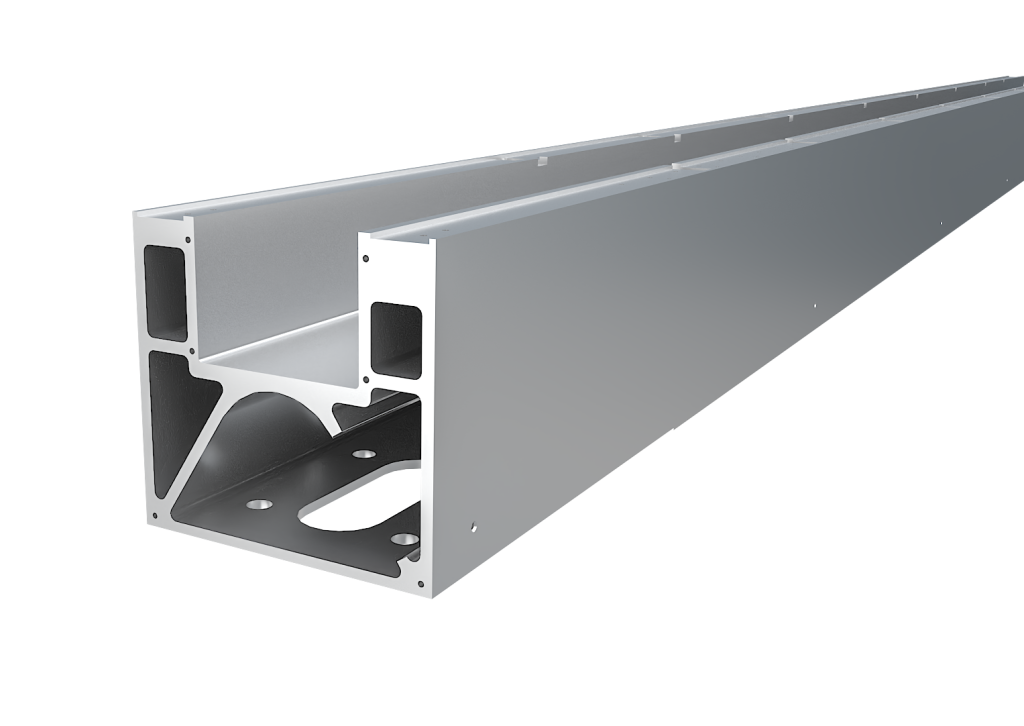

Aerospace Grade 4th Aluminum Integrated Beam

Integrated 8mm Ultra Thick Design: Engineered as a single piece molding, this aerospace grade 4th aluminium beam is the industry benchmark for lightweight performance.

Superior Material Strength: Utilizing proprietary alloy formulas and advanced heat treatment, its tensile, yield strength significantly outperform common aluminum alloys.

Exceptional Rigidity: The robust structure effortlessly absorbs impacts and pressure during high-speed processing, effectively eliminating deformation.

Optimized for High-Speed Dynamics: Perfect for high-acceleration scenarios, ensuring maximum operational efficiency and precision.

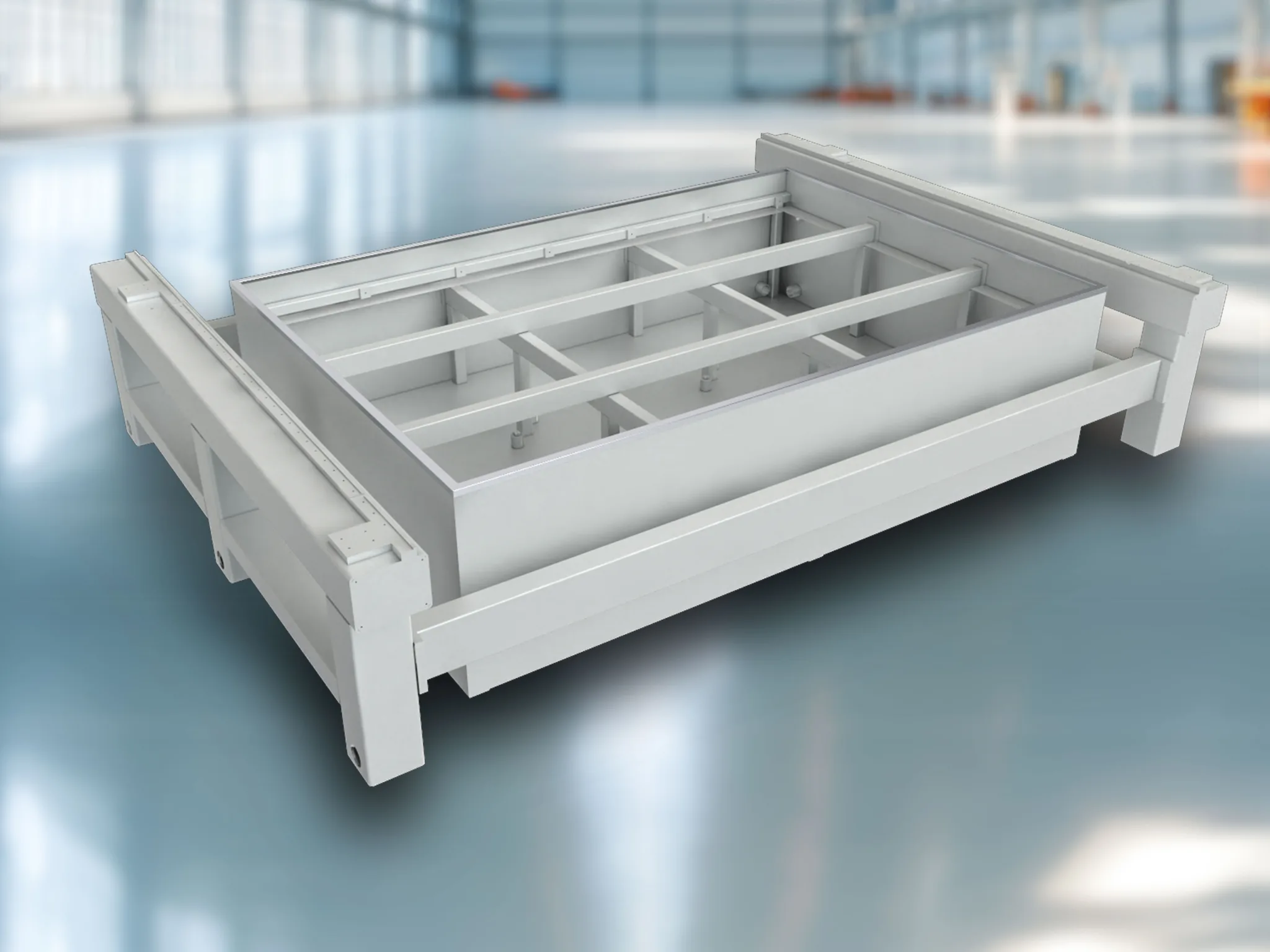

Independent Modular Worktable

Heavy Duty Bearing Capacity: A robustly engineered worktable supports large workpieces and keep compromising structural integrity.

Structural seperated Design: Adopting a detached bed-and-tank architecture, we have effectively decoupled the load-bearing platform from the machine’s motion system.

Precision Safeguard: The independent structure for machine ensuring natural stress or gravitational deformation of the water tank common after years of heavy use, will not transfer to the machine bed.

Long Time Stability: Maintains peak geometric accuracy and operational stability even under the most demanding, high-volume production cycles

Waterjet Cutting Head

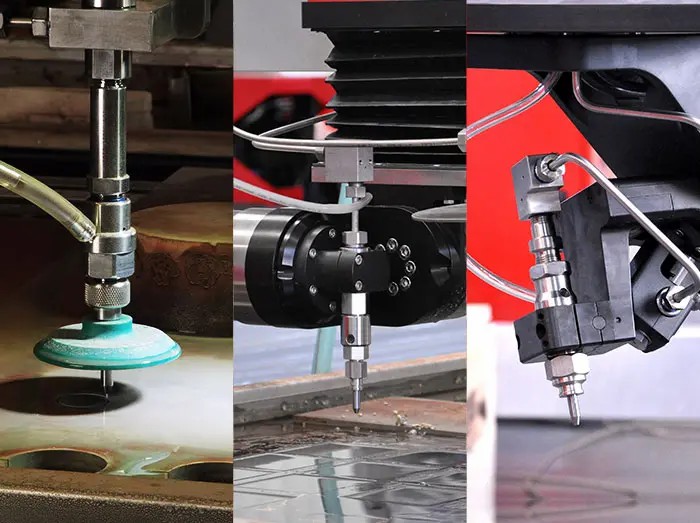

XUANLIN Waterjet machine has three different waterjet cutting head to match different applications:
3 Axis waterjet Cutting Head: Designed for precise vertical cutting, especially for flat surfaces and simple shapes.
AB 5 Axis Waterjet Cutting Head: Allows for angled cutting up to ±8°, making it suitable for detailed angled cuts in tight areas.
AC 5 Axis Waterjet Cutting Head: Support cutting at angles between ±45°, which is perfect for bevels, mitre cut.
These cutting heads are specifically designed for materials like marble, ceramic, stone, and glass, widely uses in architecture, interior decoration, mold making, art, automotive, aerospace, and shipyard.

Technical Parameter

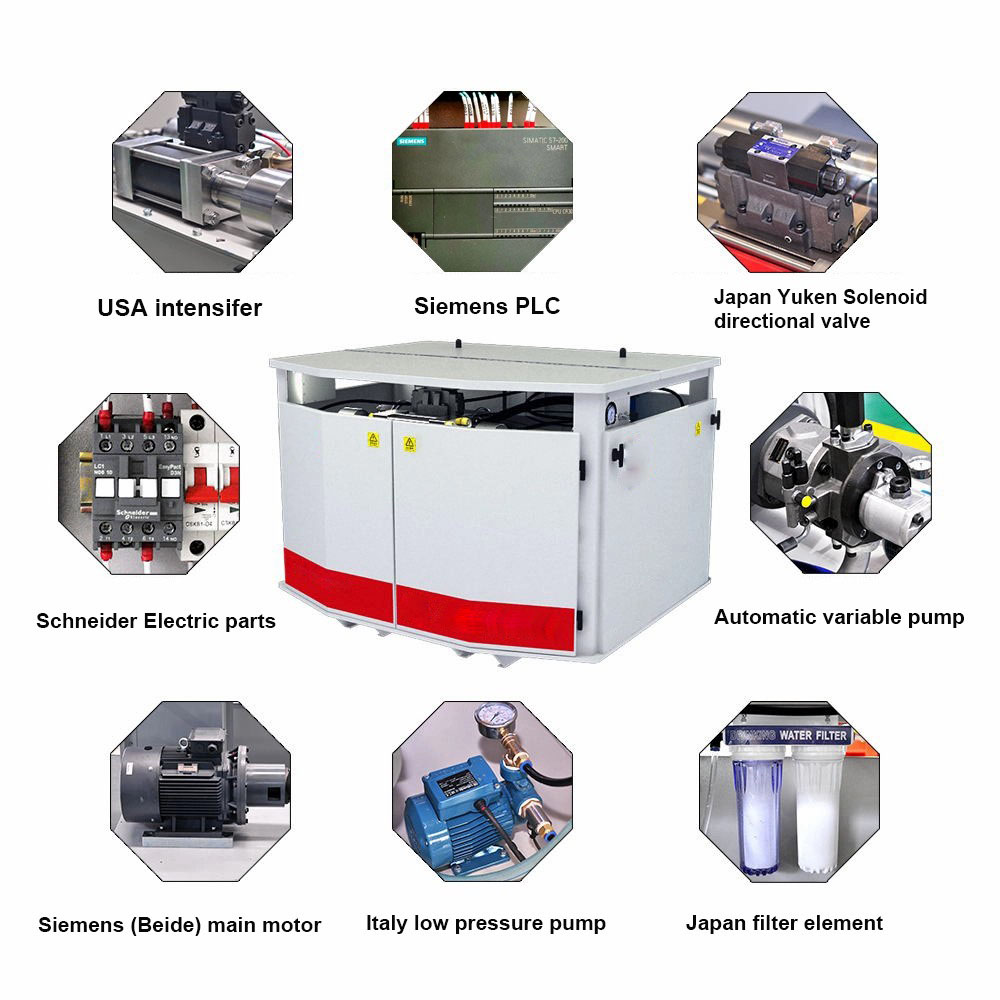

Waterjet Pump Features and Parameter

Sample Showing

Application

The destructive force of water is so much that it can cut through the strongest materials. This principle is utilized by waterjet cutting machines for industrial applications. Following is the applications of waterjet cutting machines.

Application Industry

Food Cutting & Food Processing Equipment, Aerospace industry, Automotive industry, Defence and Military,Rubber & Composites Cutting, Medical & Surgical Equipment, Architectural & Art Work, Electronics, Metal Service Centres, Oil & Gas, Mining

Applicable Materials

Stones & Tiles Cutting, Glass Cutting,

Metal Cutting, Ceramics, Plastics,  Foam and Rubber,  Textiles, Composites,   Paper and Cardboard, Food,  Insulation Materials, Cement Boards,
