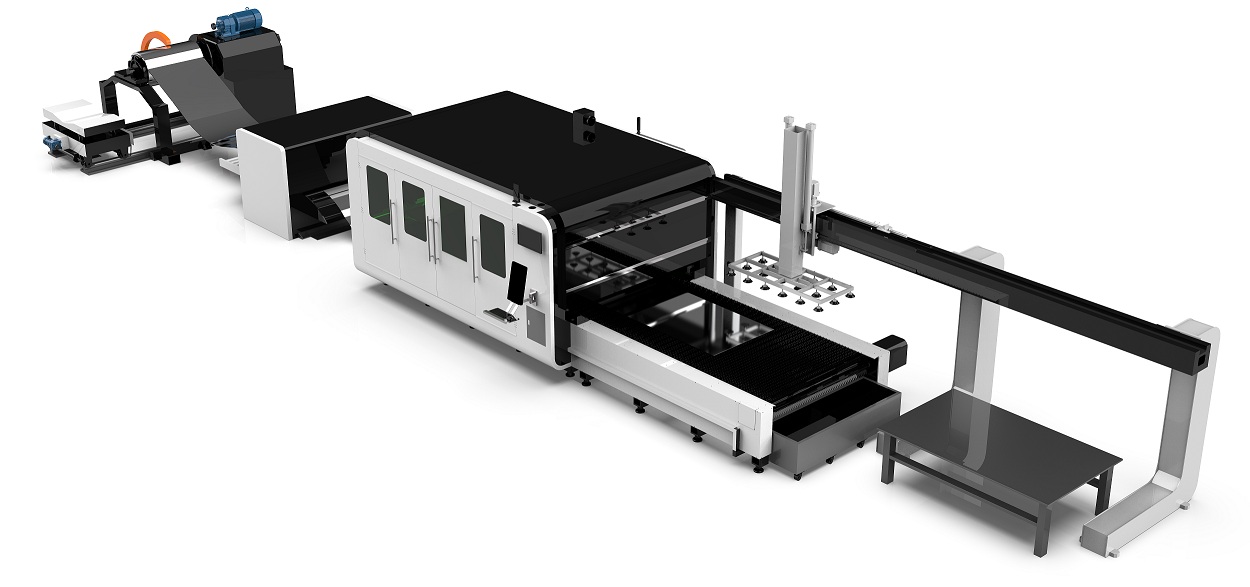

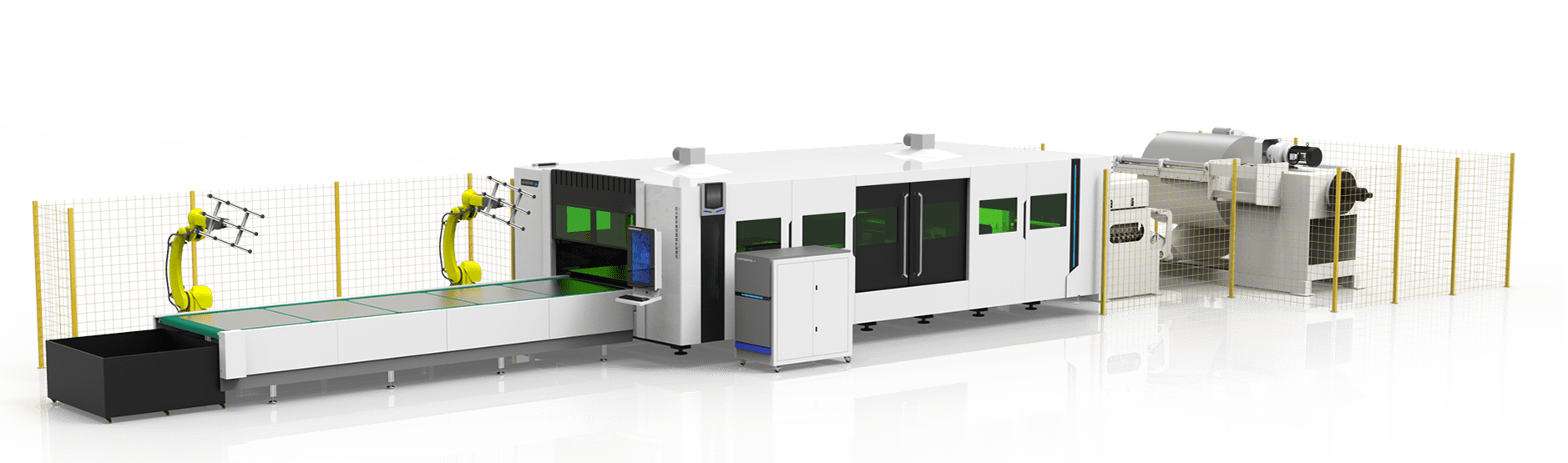

Coil Auto-feeding laser cutting machine

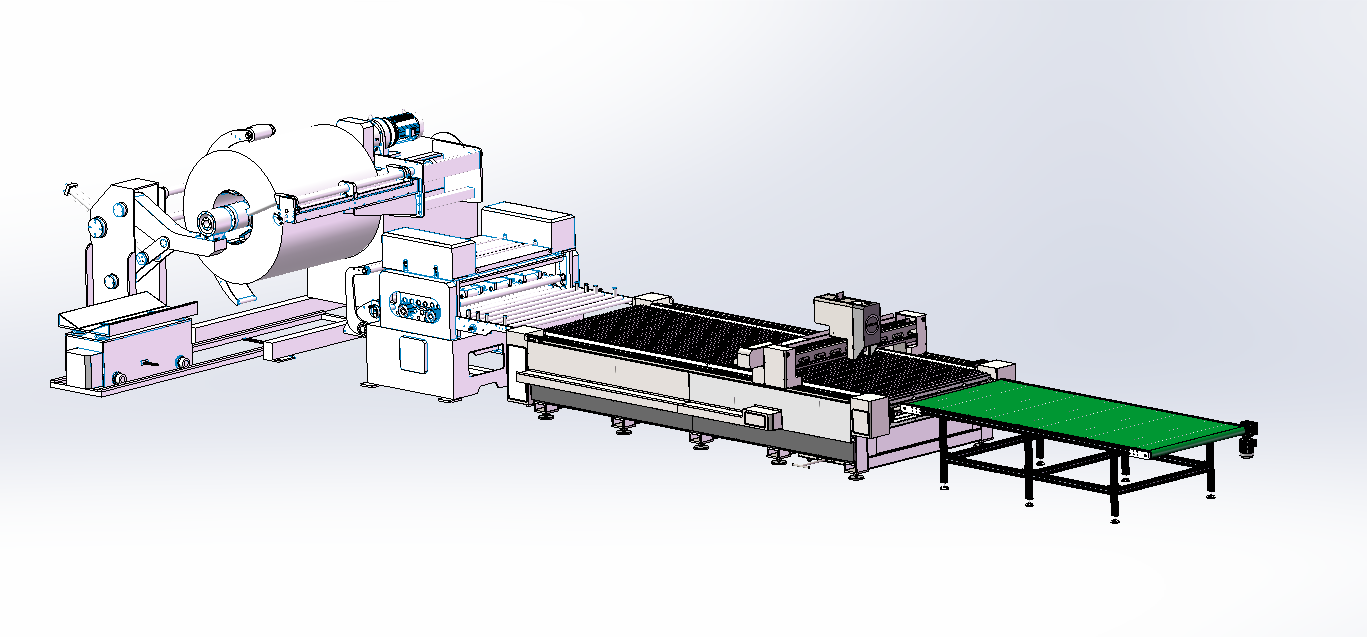

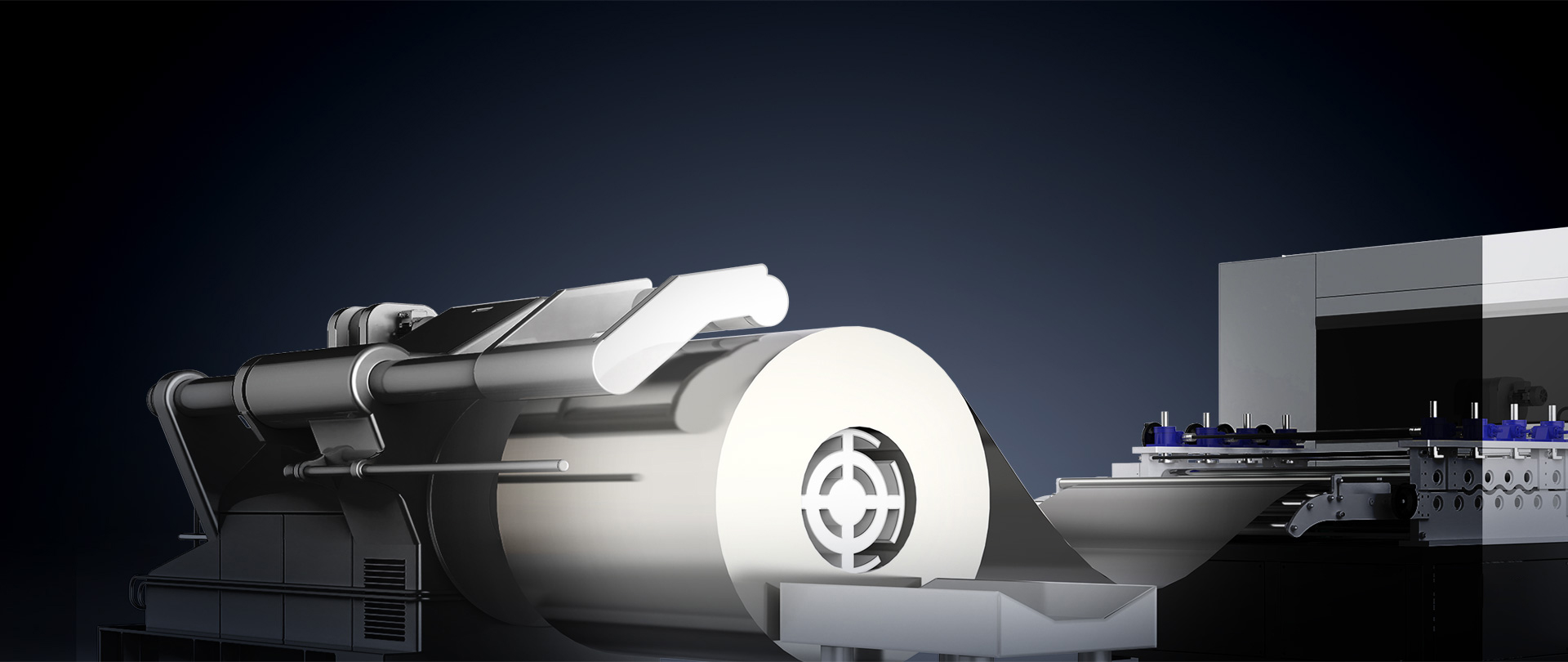

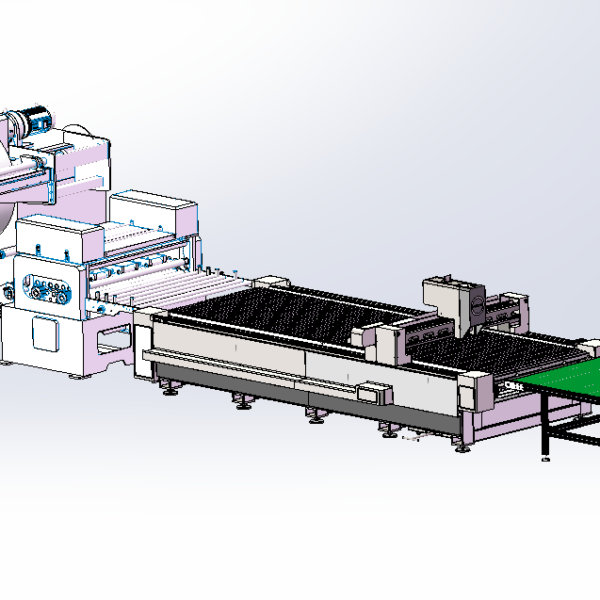

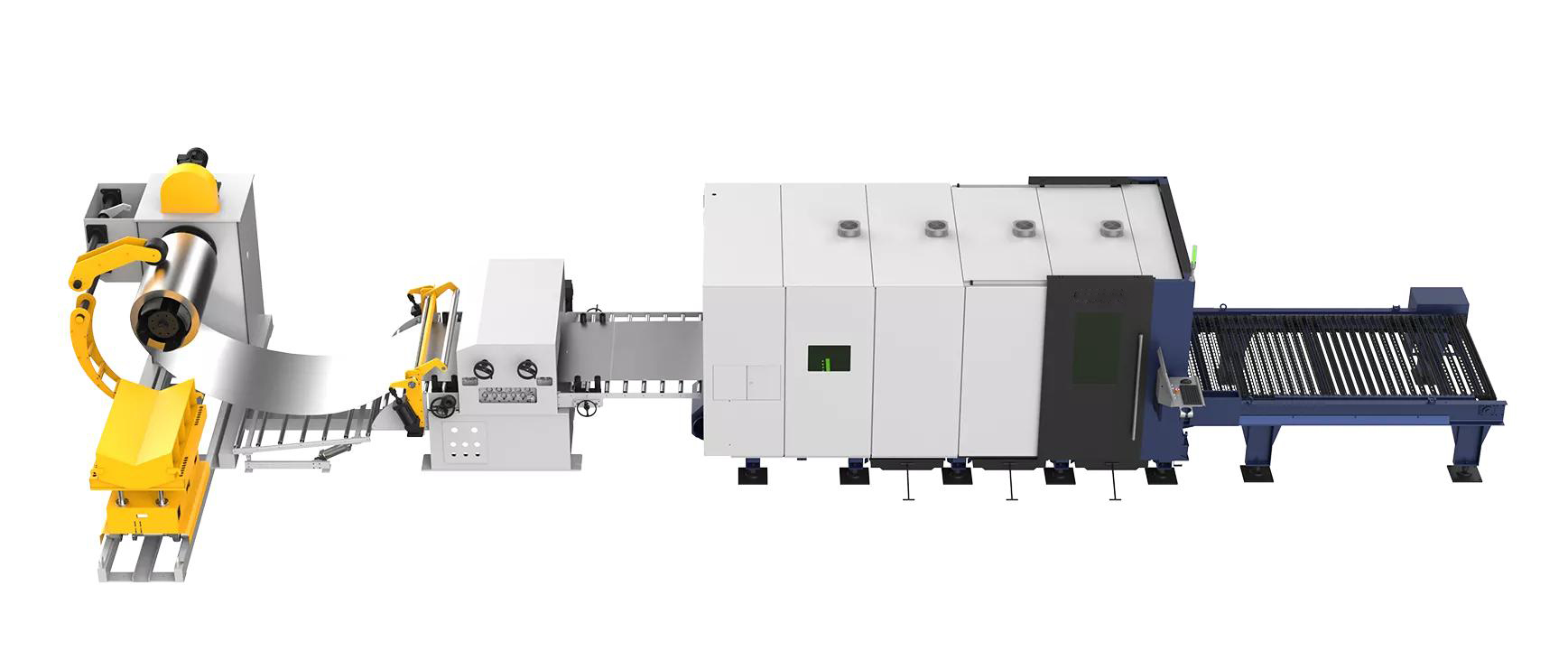

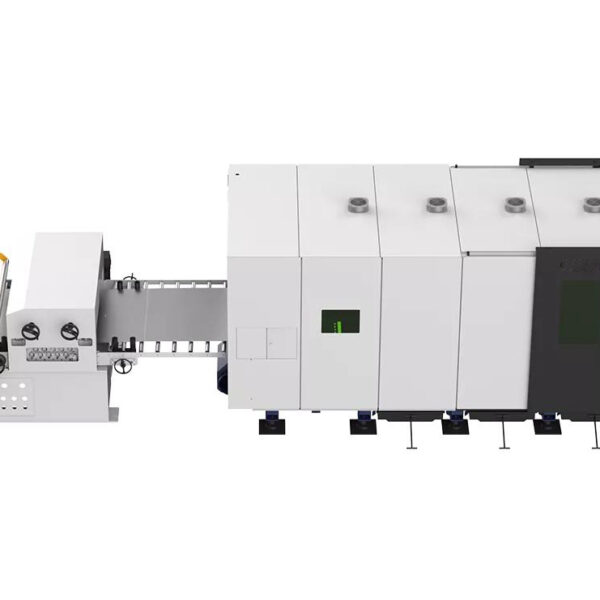

Coil auto feeding fiber laser cutting line integrates decoiling, leveling, feeding and laser cutting into one automated workflow — enabling continuous, high efficiency cutting of thin coil steel (0.031-0.118 in) and significantly improving material utilization and production speed.

Saving raw materials: By replacing the board with coil materials and directly cutting, there will be no loss of material head and tail when cutting a single piece, which can greatly save raw materials
Reduce scrap rate: Due to the elimination of internal stress and guaranteed flatness of the shear formed sheet metal, the scrap rate is reduced.
Reduce workpiece costs: The loss of time during loading and unloading of sheet metal no longer exists, greatly improving production efficiency and reducing workpiece costs.
Reduce labor costs: Continuous cutting of coil materials, batch processing, reducing labor intensity.

Coil Auto-feeding laser cutting machine

Machine Features

1) Aviation Aluminum Beam

It is manufactured with aerospace standards and formed by 4300 tons press extrusion molding. After aging treatment, its strength can reach 6061 T6 which is the strongest strength of all gantries. Light weight, high strength.

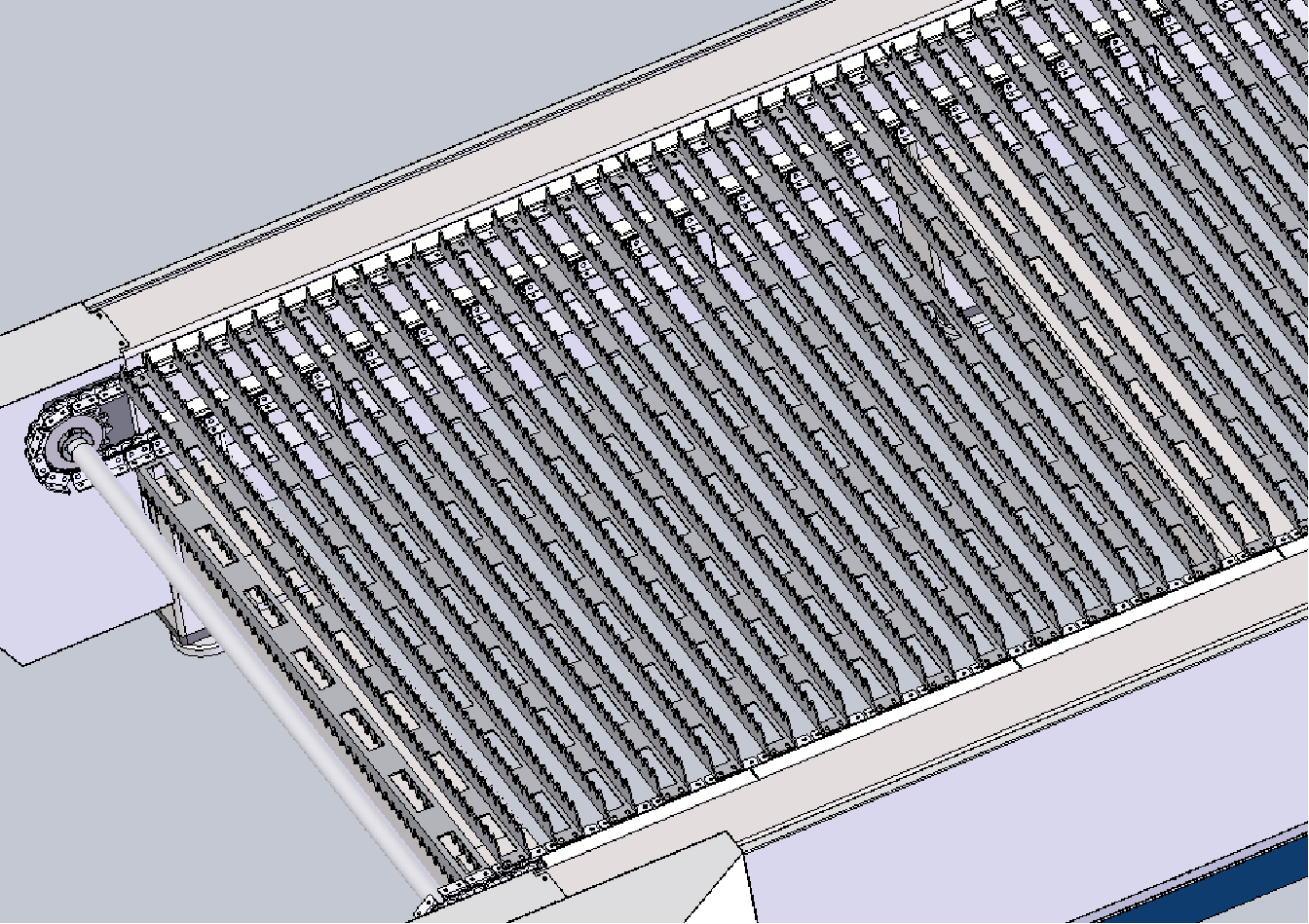

2) Follow-Up Rotary Worktable

Effectively prevent surface scratches on metal sheets. Reinforced slat frame for improved burn resistance.

3) Continuous Operation

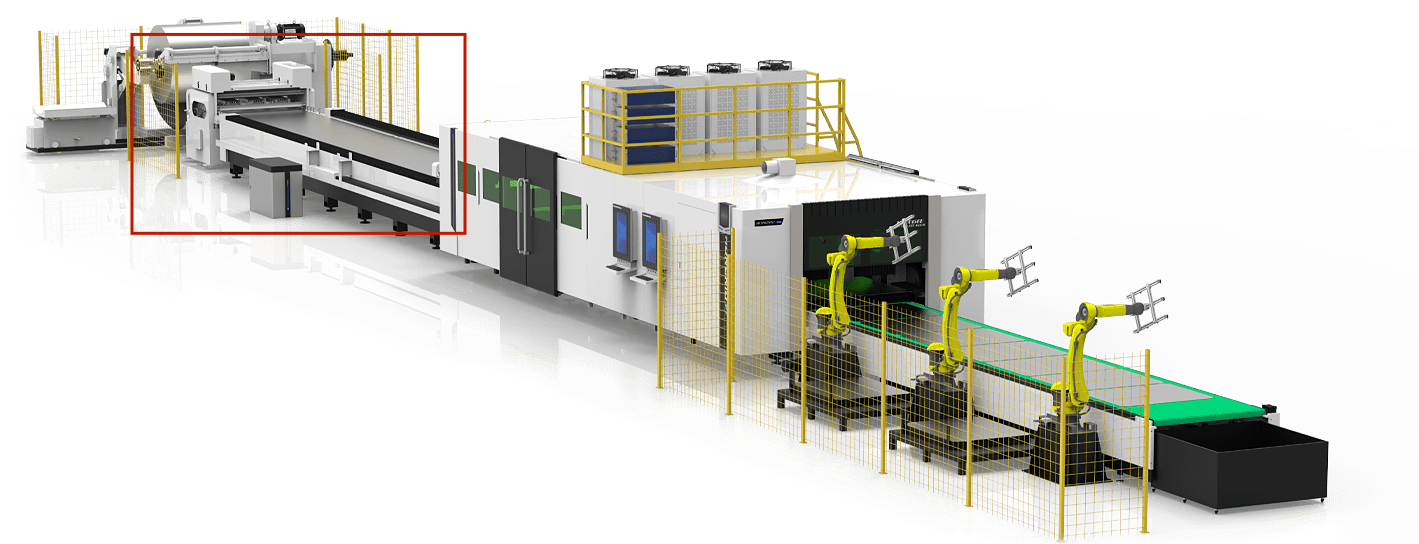

The coil material conveying equipment continuously transports materials, with synchronous feeding and unloading, seamless cutting connections, further enhancing efficiency.

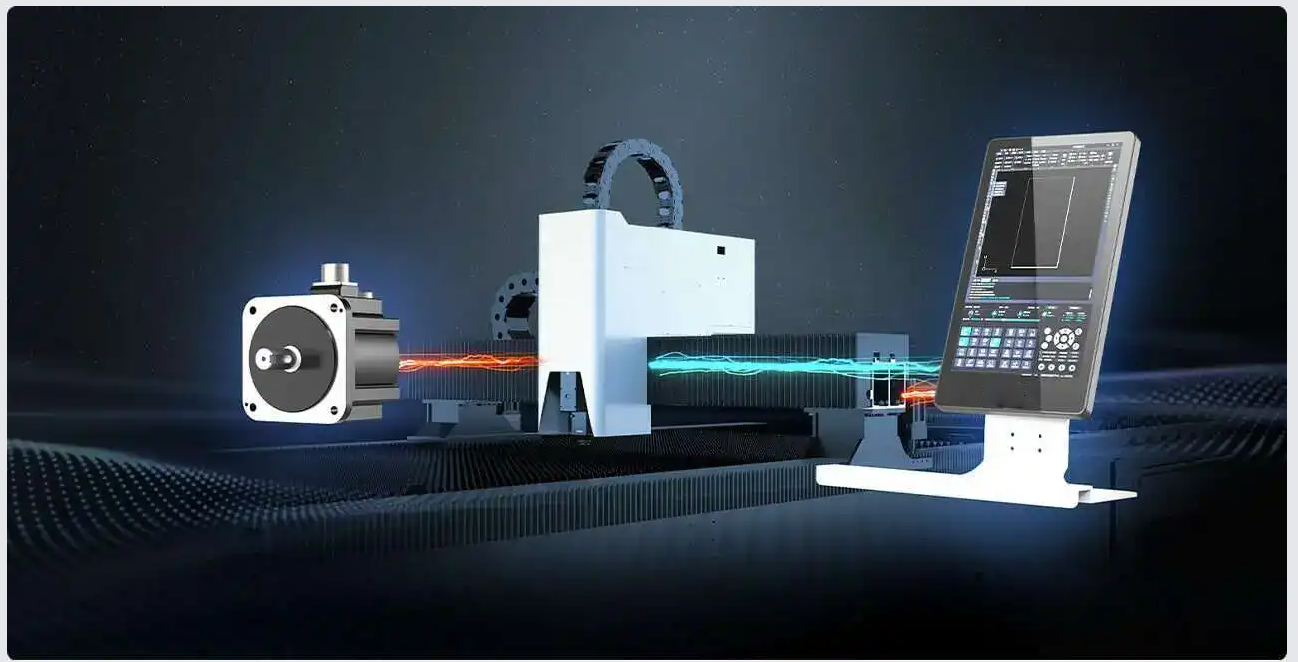

4)Bus Type Control System + Bus Type servo Motor

Real-time adjustment, efficient coordination, powerful, and easy deployment

Technical Parameter

Model	XL-3015B	XL-6015B
Laser power	3kw/6kw
Working area	3000*1500mm	6000*1500mm
Coiled material inner diameter	Φ508mm – Φ610mm
Coiled material width	500-1500mm
Coiled material thickness	0.8~3mm(carbon steel) 0.8~2mm(stainless steel)
Maximum outer diameter of coiled material	Φ1500mm
Minimum outer diameter of coiled material	Φ800mm	Φ800mm
Maximum material weight	10 T	10 T
Feeding speed	0-20m/min	0-20m/min
X/Y axis positioning accuracy	±0.05mm/m	±0.05mm/m
X/Y axis repeat positioning accuracy	±0.03mm	±0.03mm
X/Y axis maximum acceleration	1.0G
X/Y axis maximum moving speed	100m/min
Dimension	1550060002550m	1600040002100mm

Sample Display

Application Industries

Automotive manufacturing, office furniture, electrical industry, chassis cabinets, elevator manufacturing, kitchenware, decorative curtain walls, machinery manufacturing, mold industry, rail transportation, medical equipment, office furniture.
