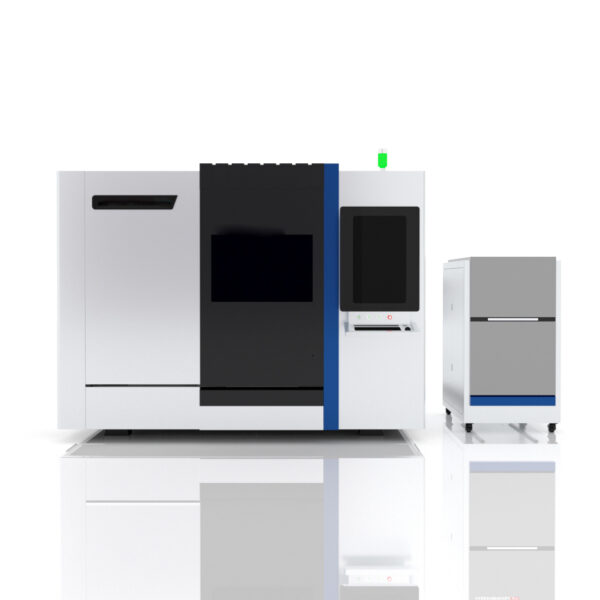

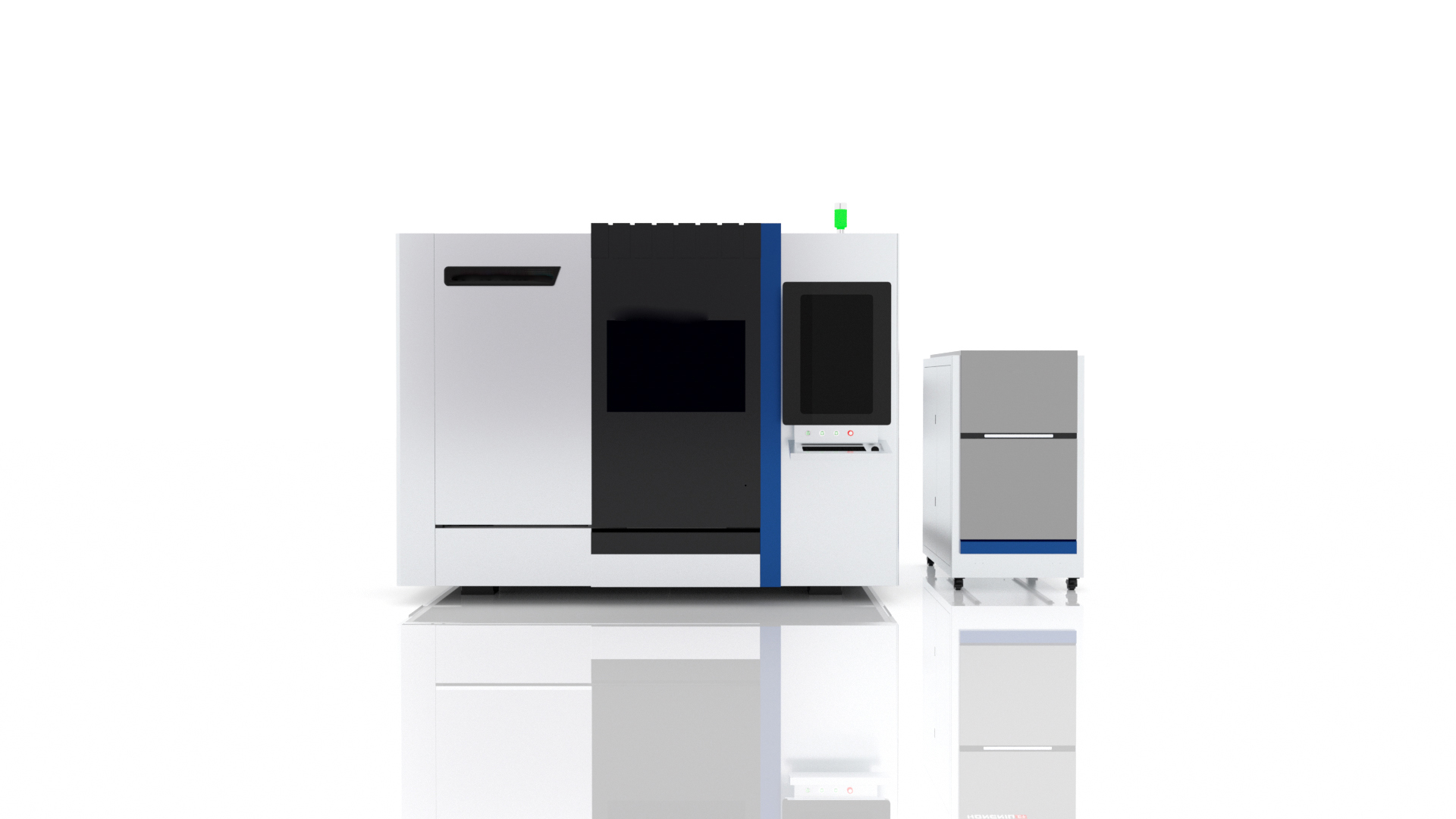

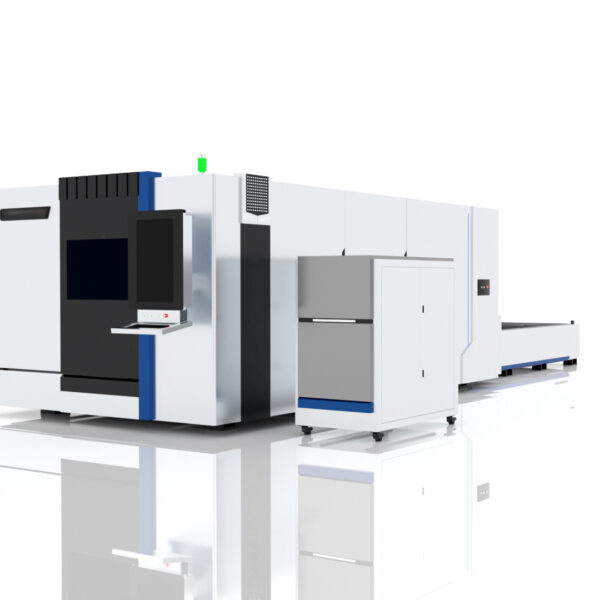

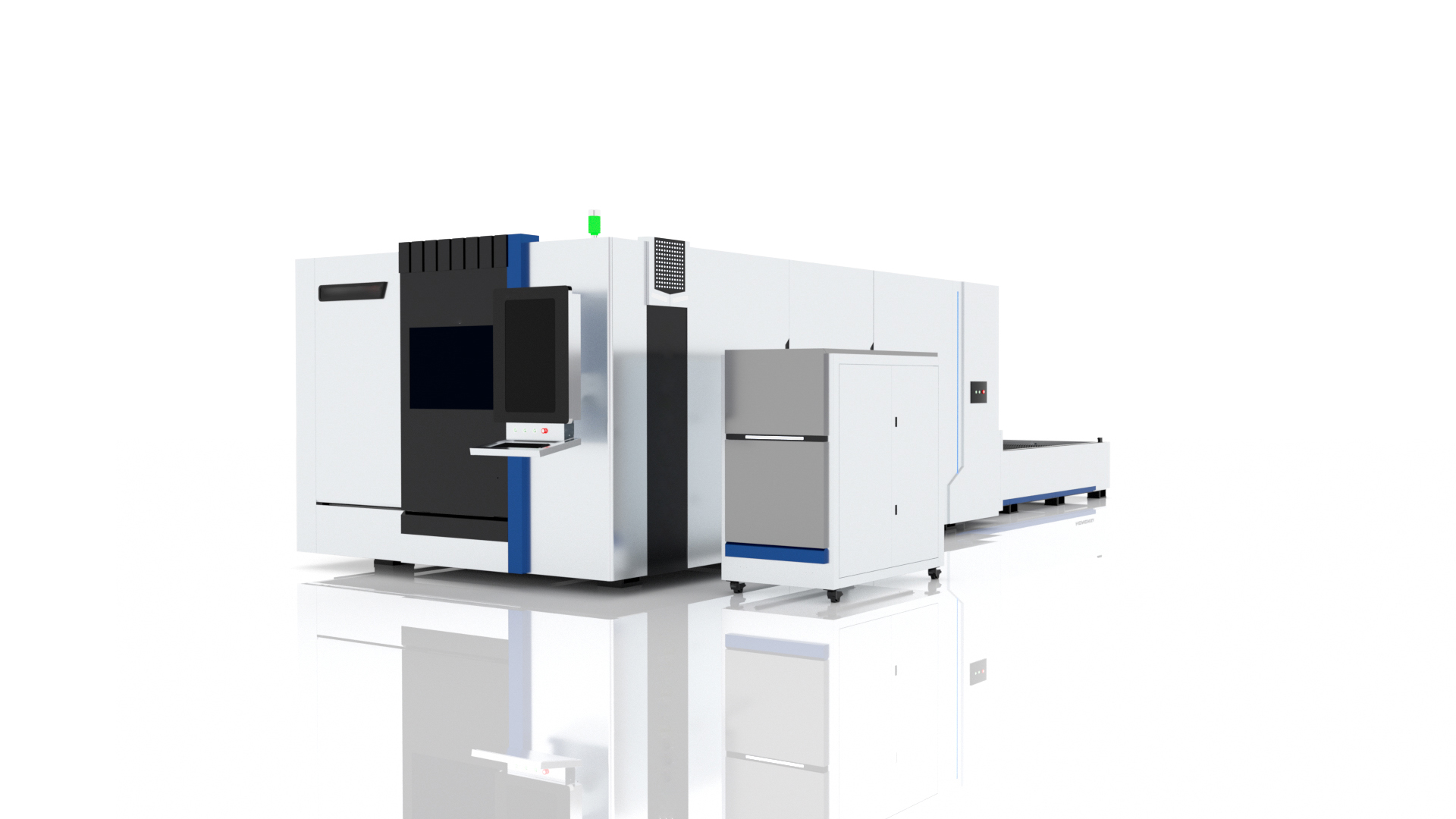

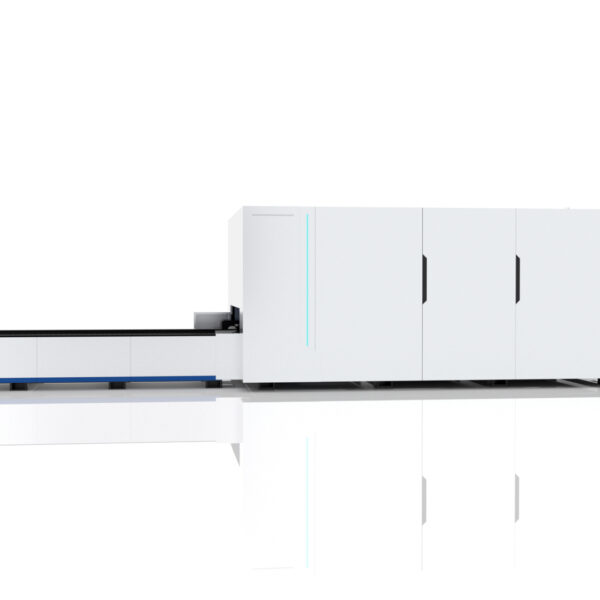

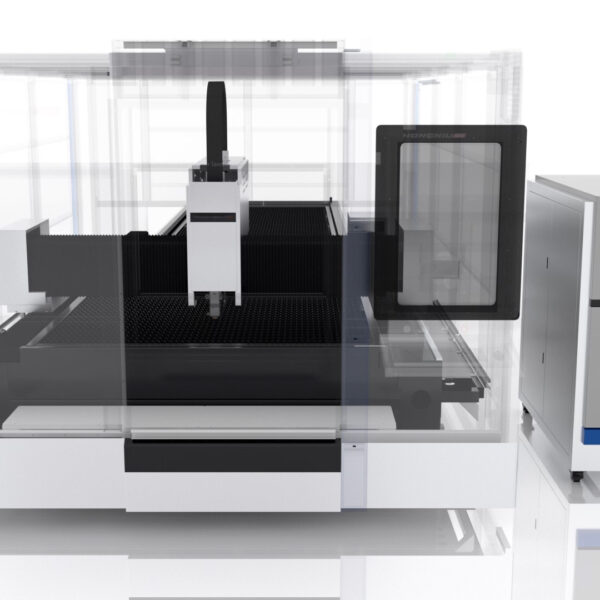

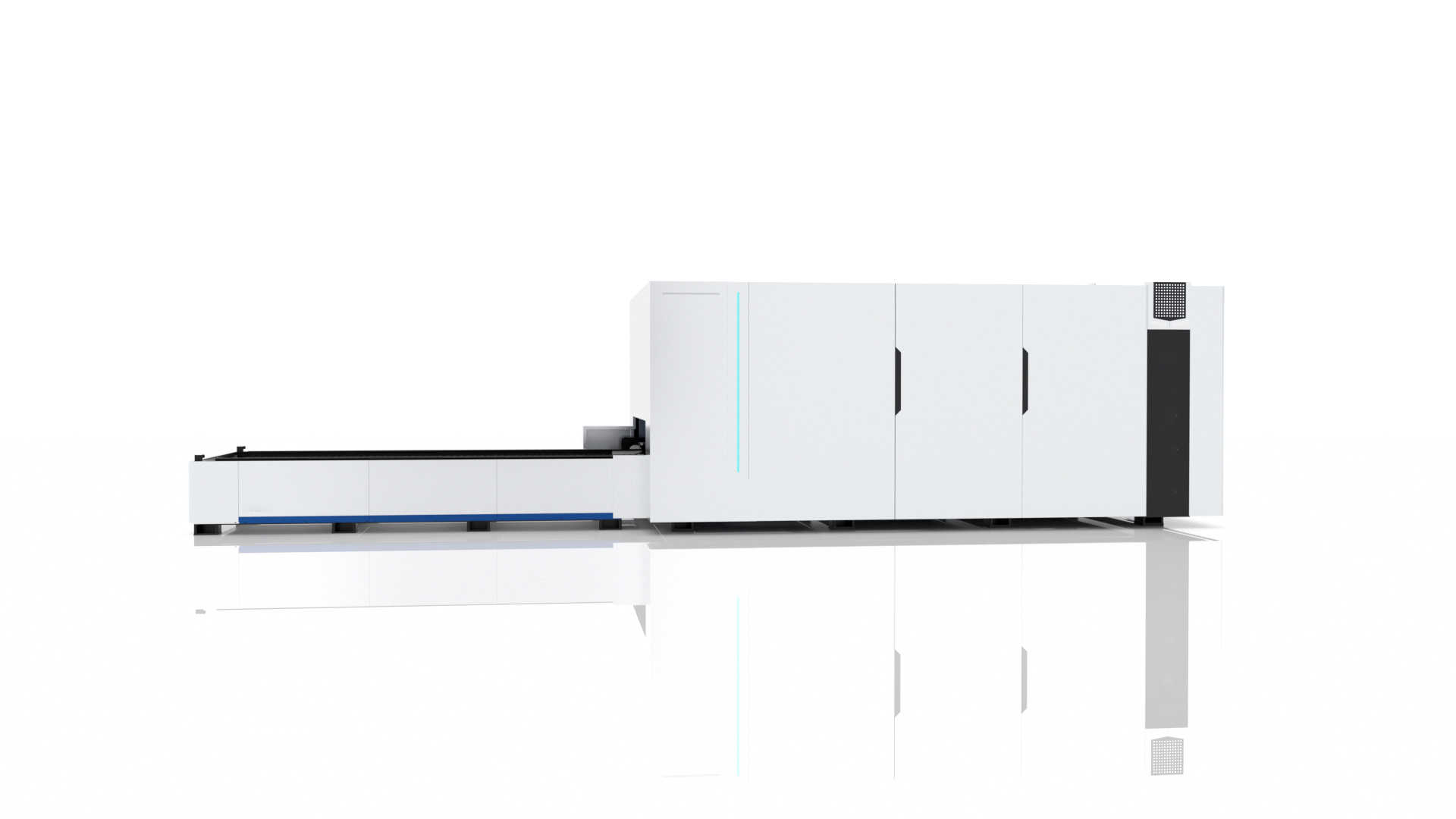

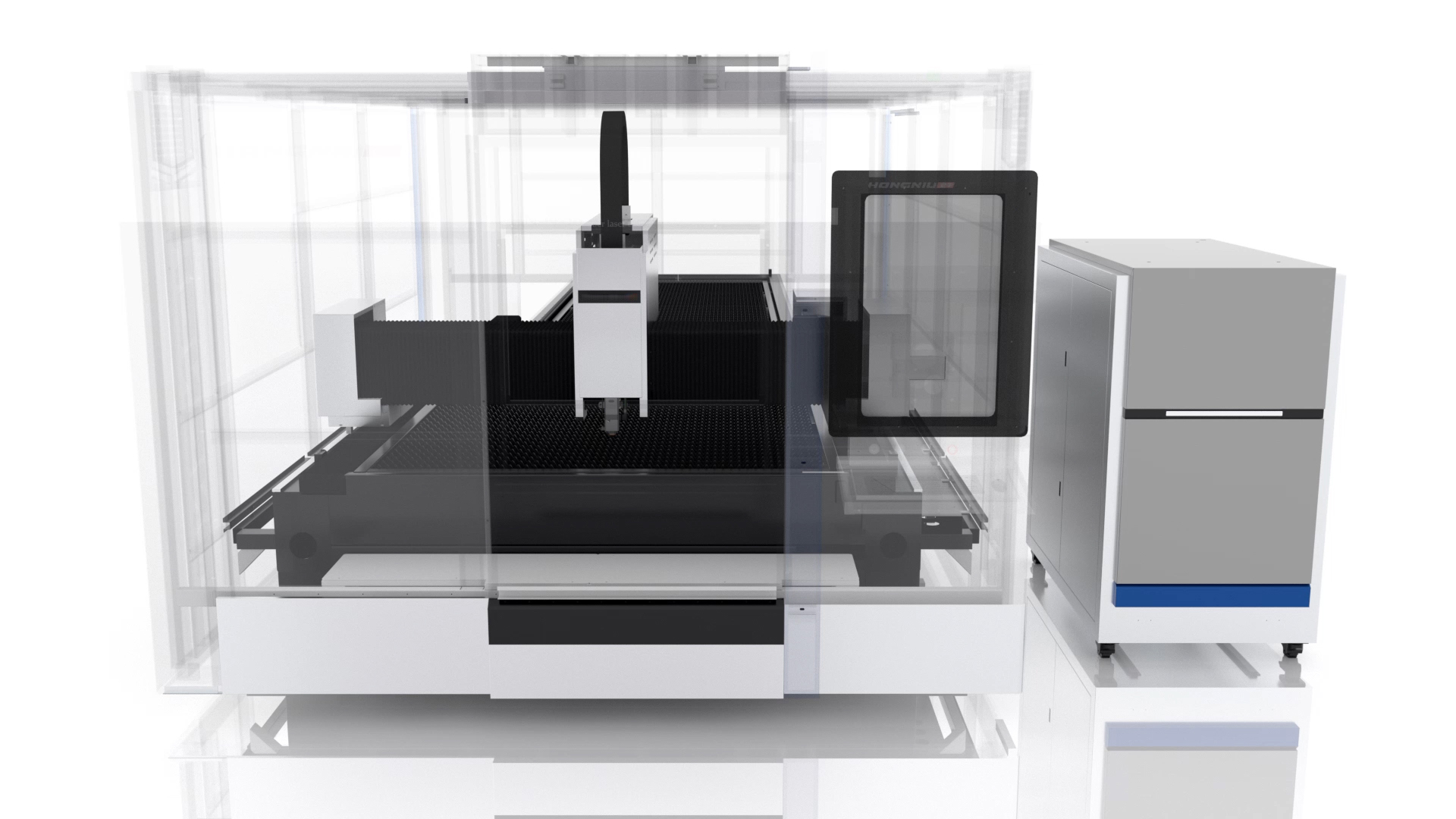

H Series High Cost Performance Laser Cutting Machine
CNC Fiberl Laser cutting machine for metal sheet

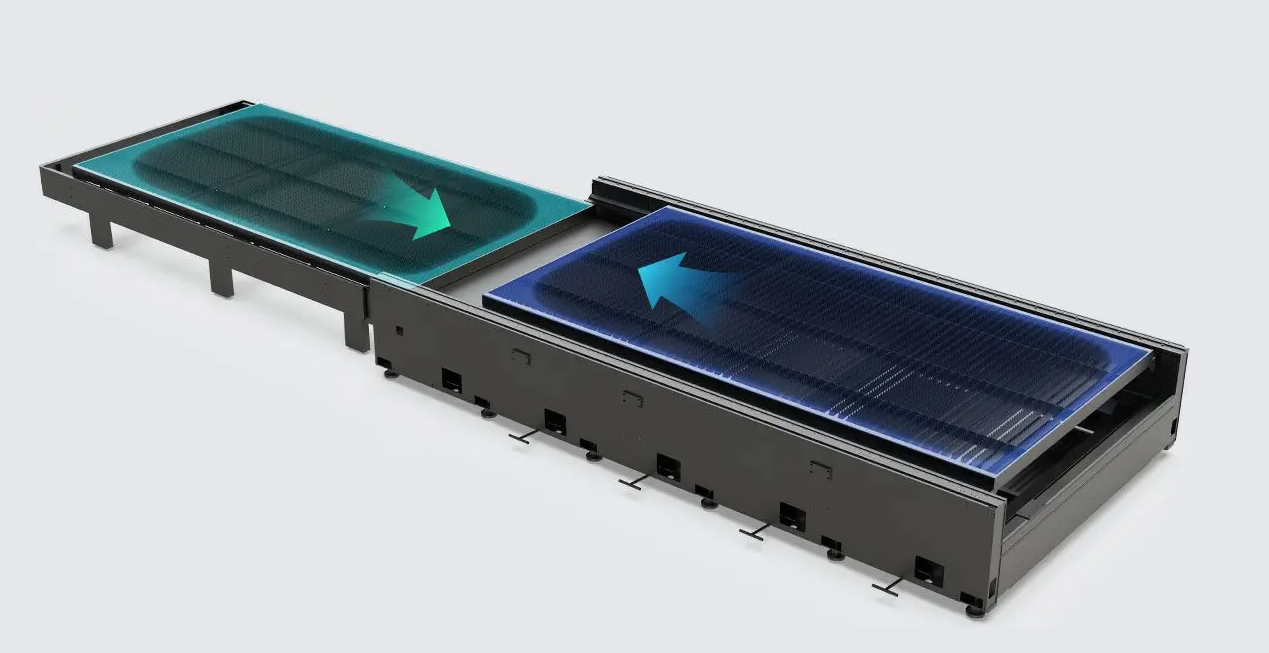

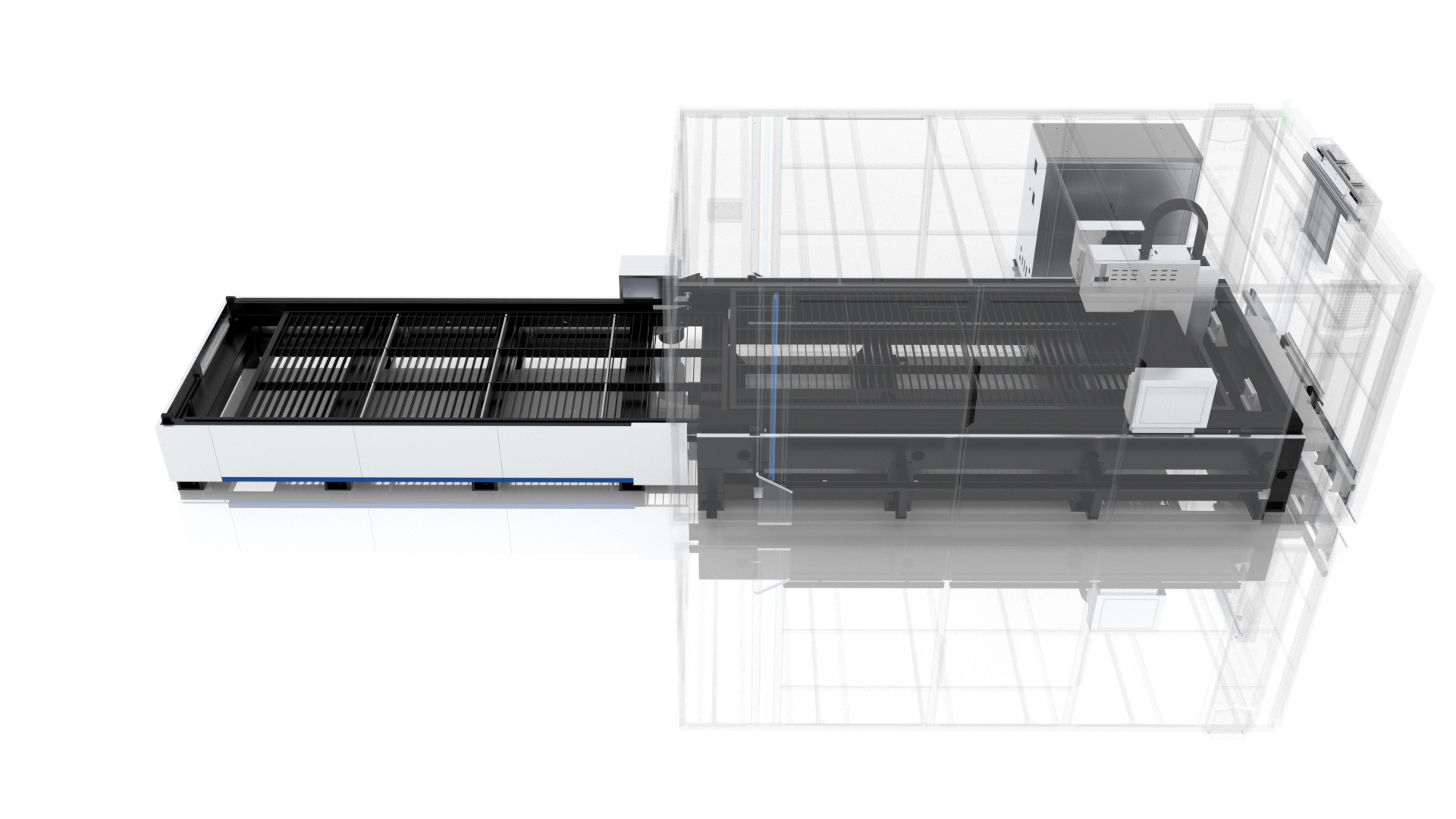

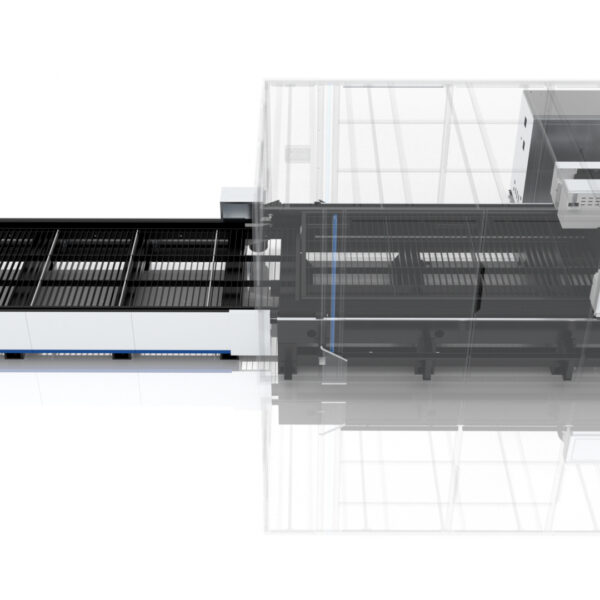

Dual-position exchange table
15 seconds quick exchange, significantly improving production efficiency, saving labor costs.
Mortise and rivet welded bed
The bed is made of super-heavy steel sheet mortise and rivet welded, utilizing stress-relief annealing technology, internal reinforcement ribs + transverse tube support, ensuring high strength and stability.
Matrix exhaust structure
Double-row multi-row independent, high-sealing partition smoke exhaust, effectively filtering harmful gases, smoke, dust, making the production process more environmentally friendly.
Technical parameter
| Model: | XL-3015H | XL-4015H | X-4020H | XL-6015H | XL-60250H |
| Working area (mm) | 3000*1500 | 4000*1500 | 4000*2000 | 6000*1500 | 6000*2500 |
| Laser source: |
MAX /Raycus (Optional) |
||||
| Fiber laser power: |
1.5kw/2kw/ 3kw/6kw (Optional) |
||||
| X and Y positioning accuracy : |
±0.03mm |
||||
| Max acceleration : |
1.2G |
||||
| Drive type of X, Y, Z axis: |
Servo motor and driver |
||||
| Power consumption of whole machine : |
< 15KW (< 12KW-1 KW) |
||||
| Rated voltage and frequency : |
380V/50Hz/60Hz |
||||
| Operating temperature: |
0℃-40℃ |
||||
| Control system: |
Cypcut/Raytool |
||||

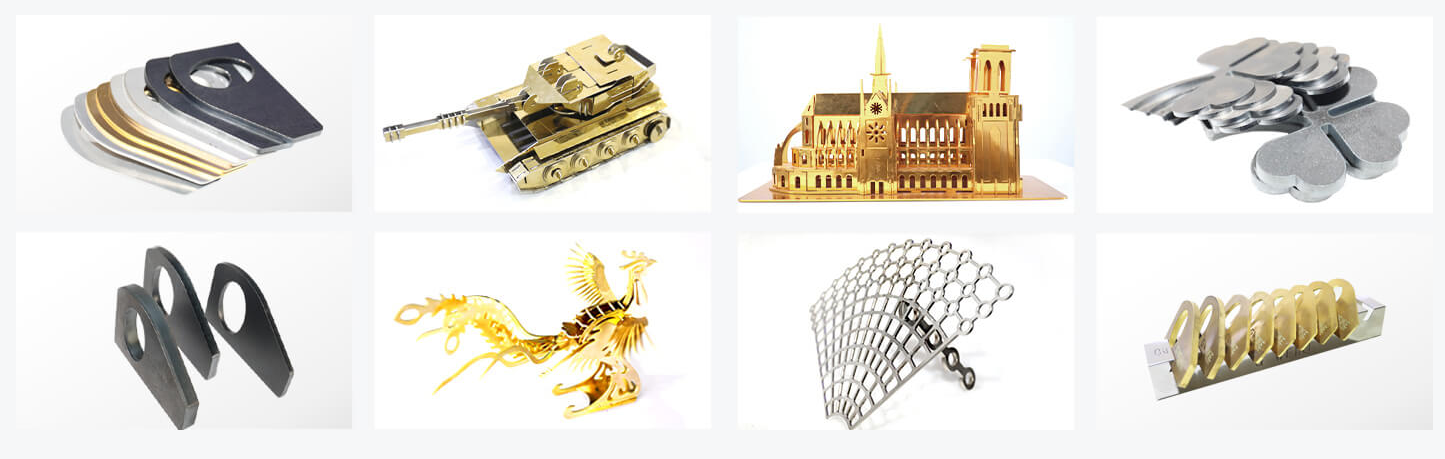

Cutting Sample Display
Application Industries
Agricultural machinery, steel structures, tower industry, shipyard, mining machinery, sheet metal processing, mechanical equipment, construction machinery
