SL Series

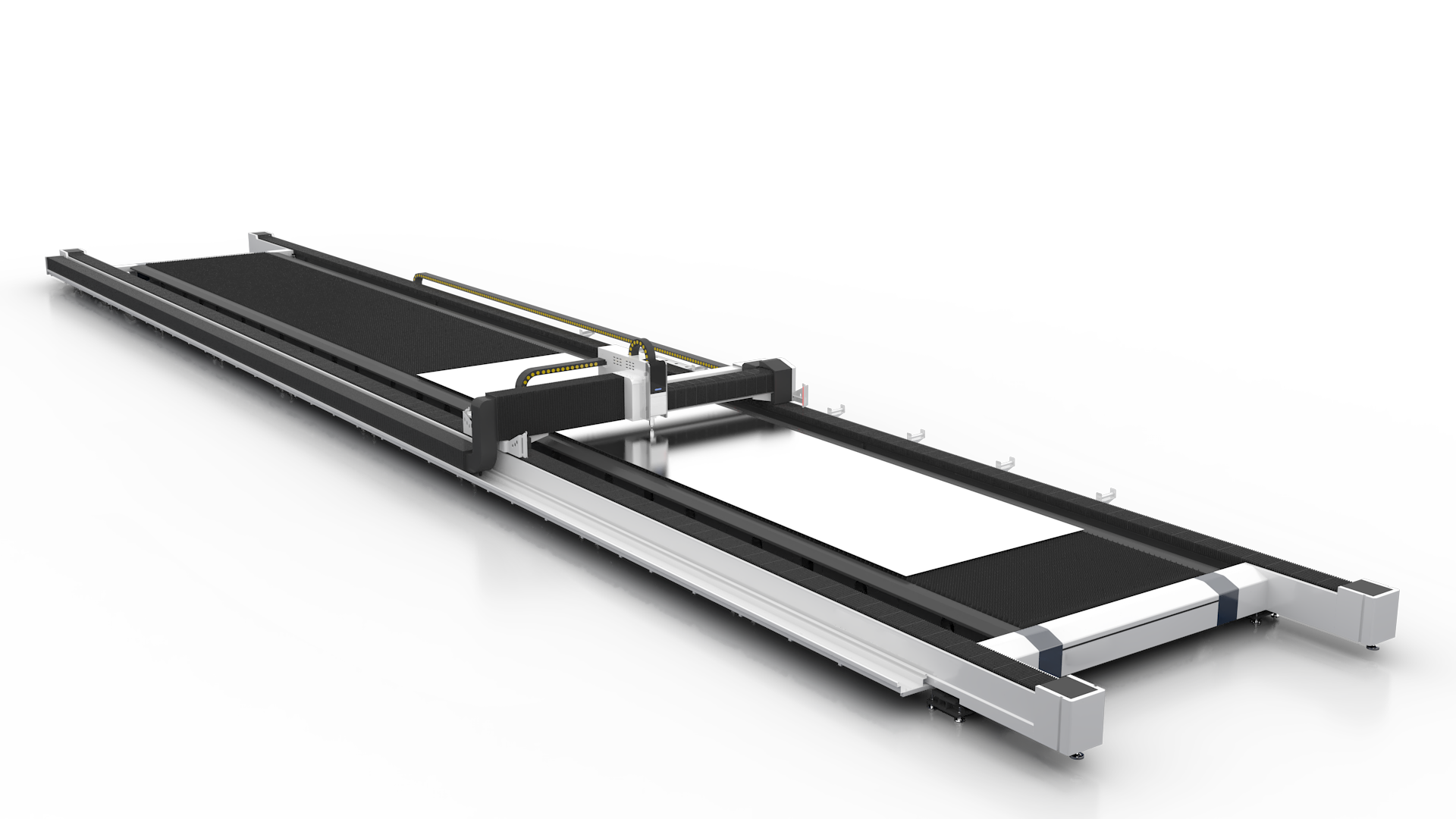

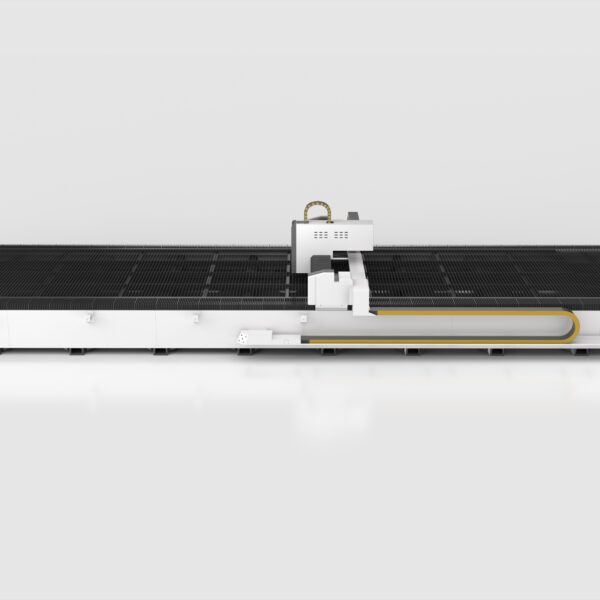

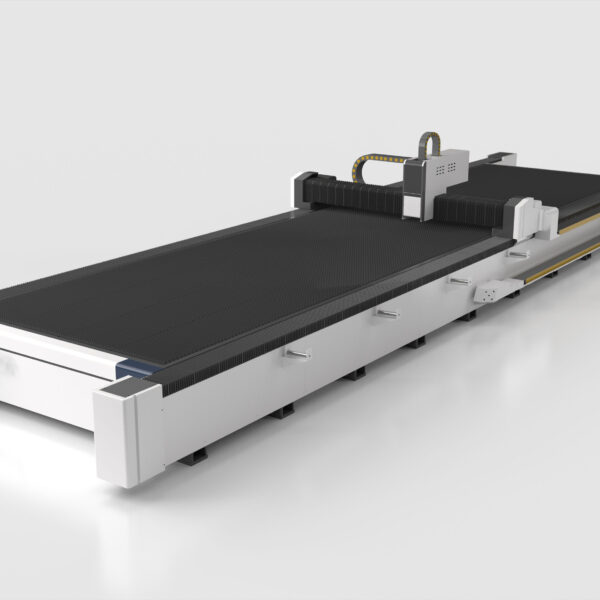

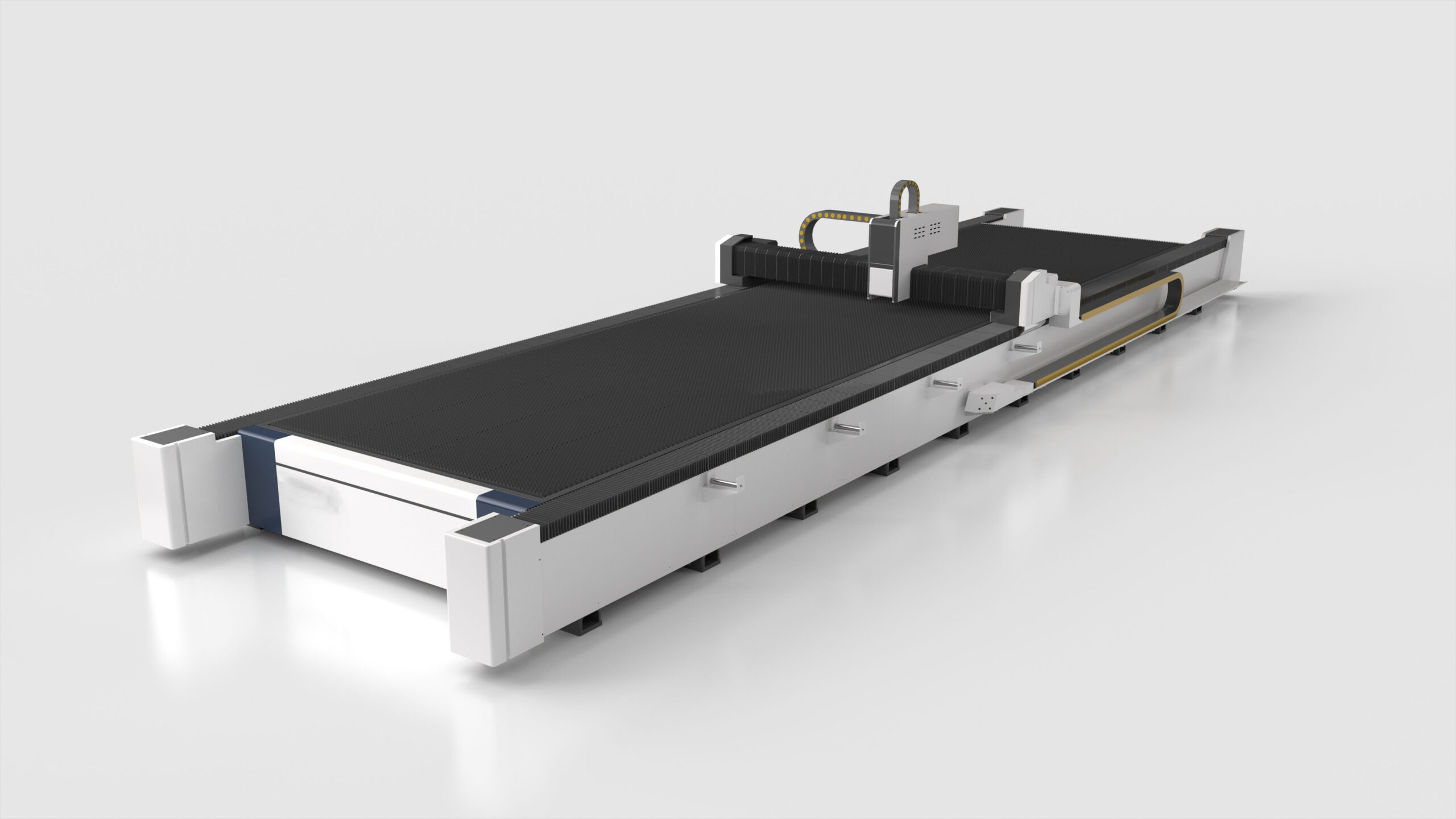

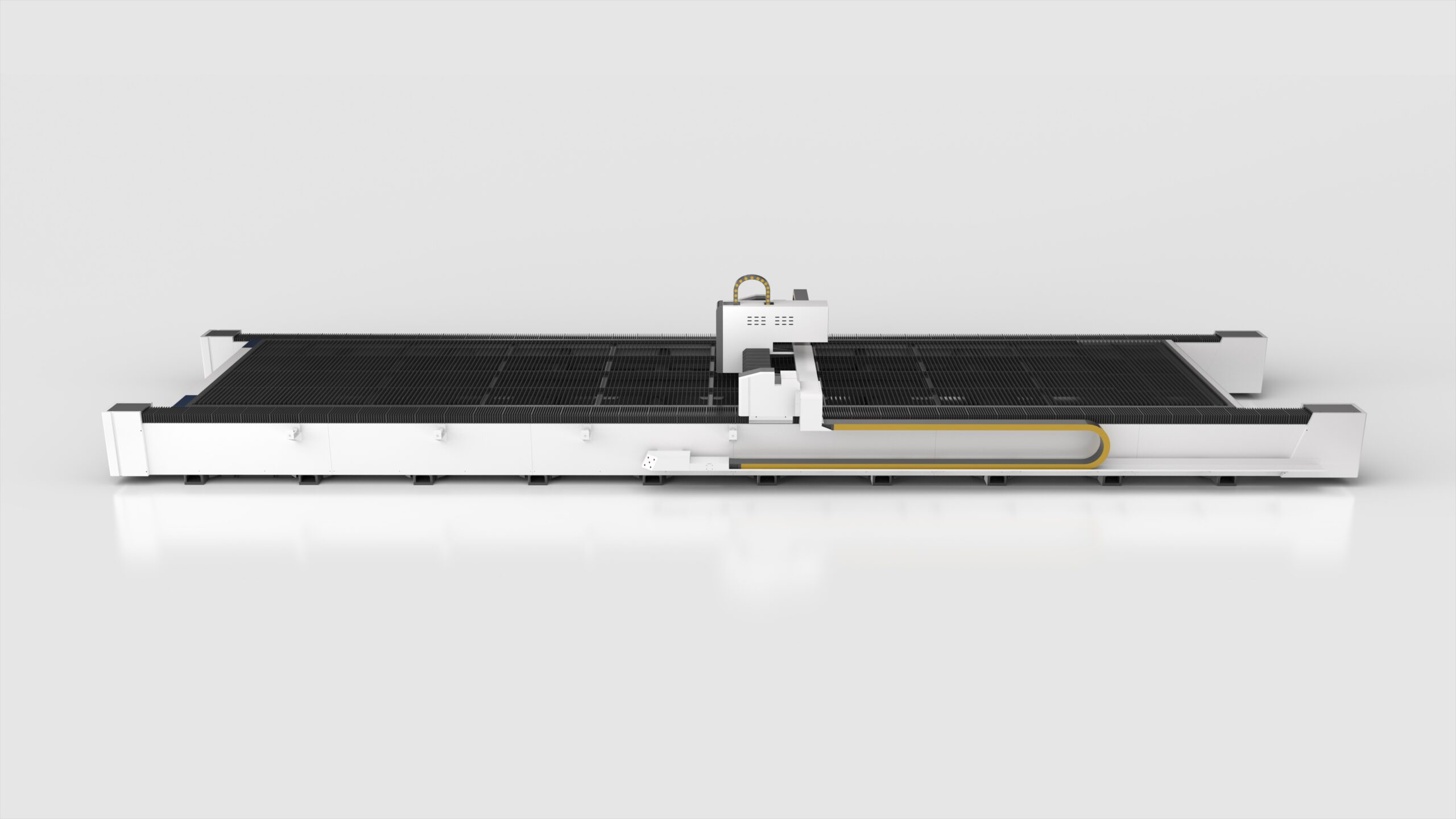

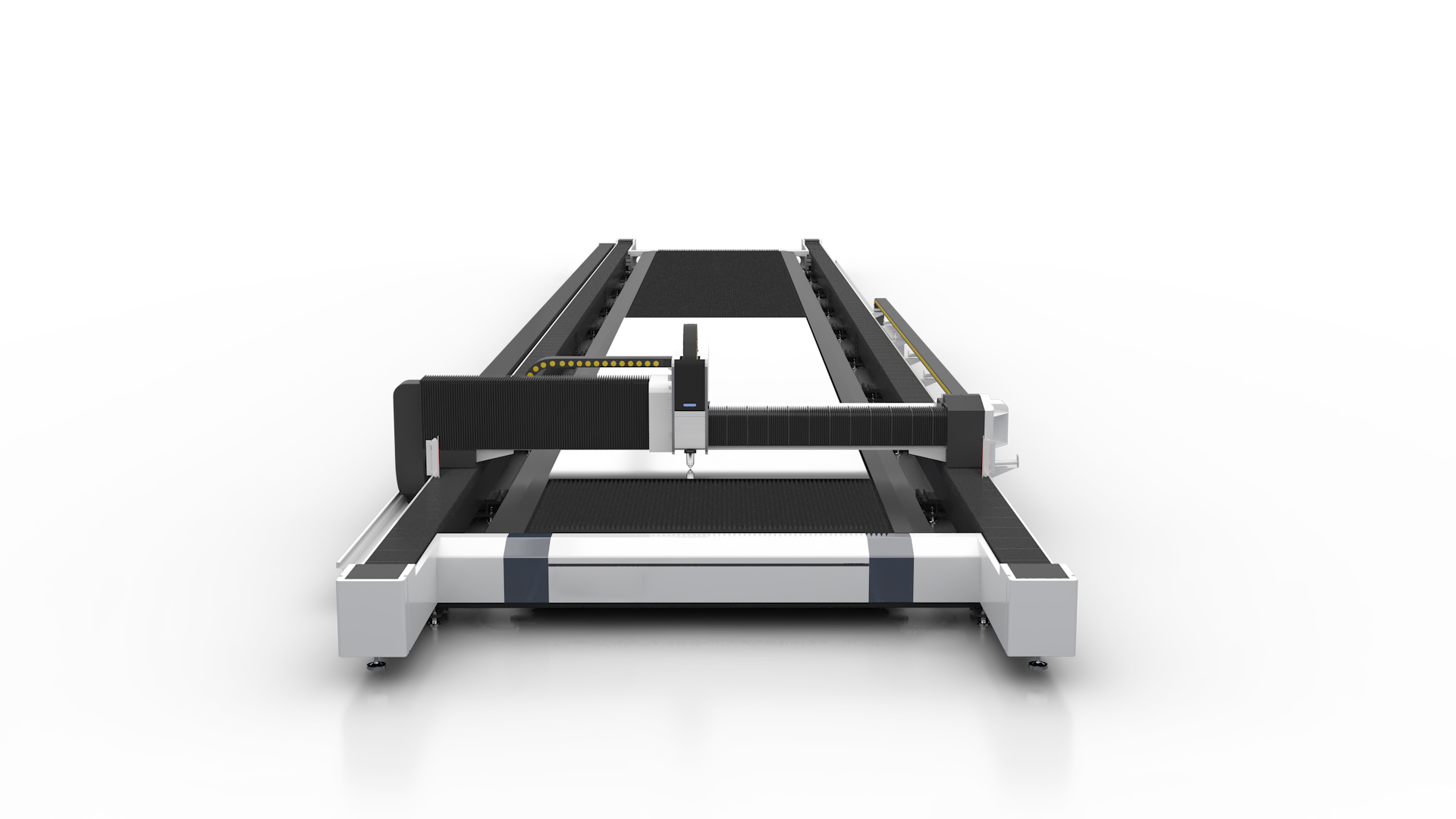

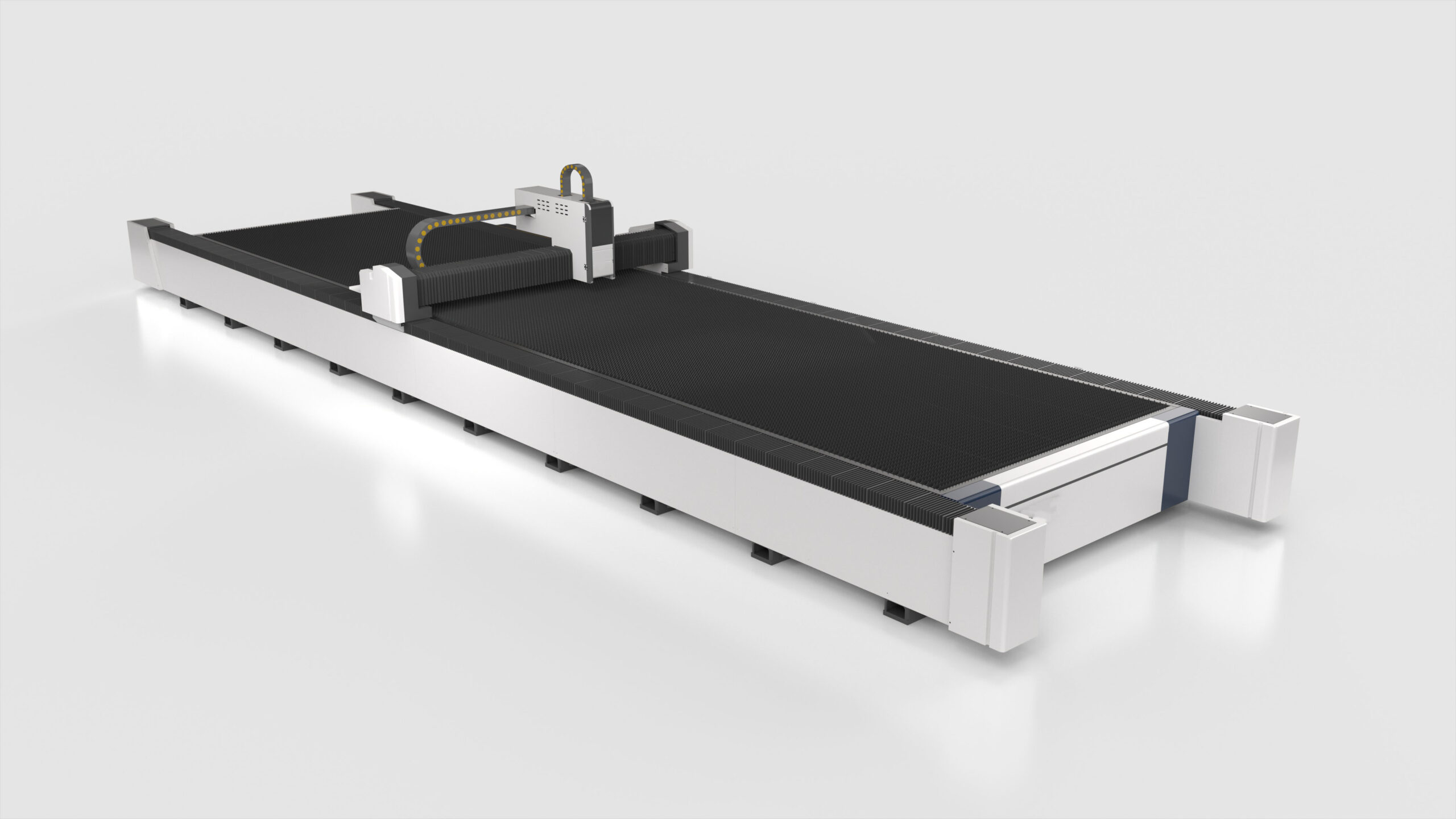

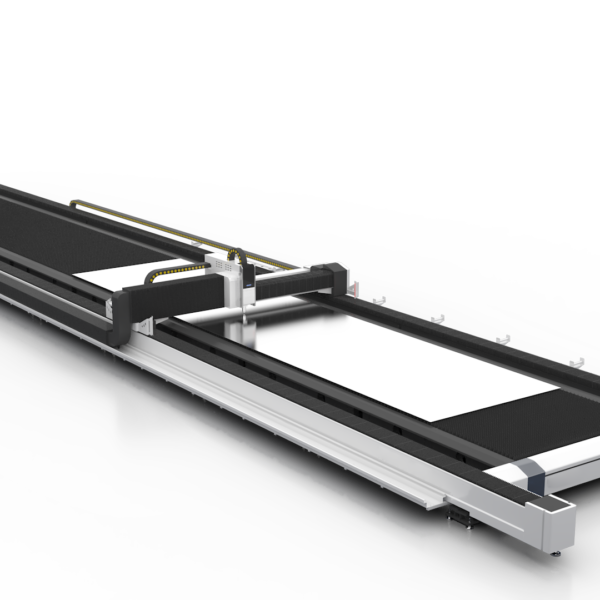

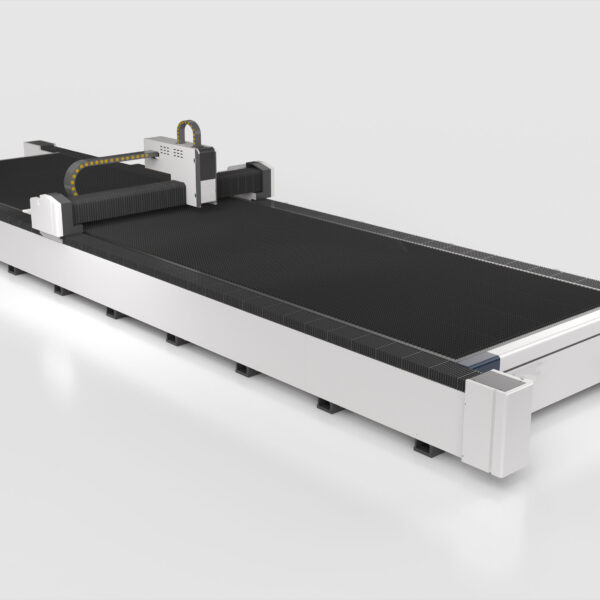

Large Ground Rail Laser Cutting Machine

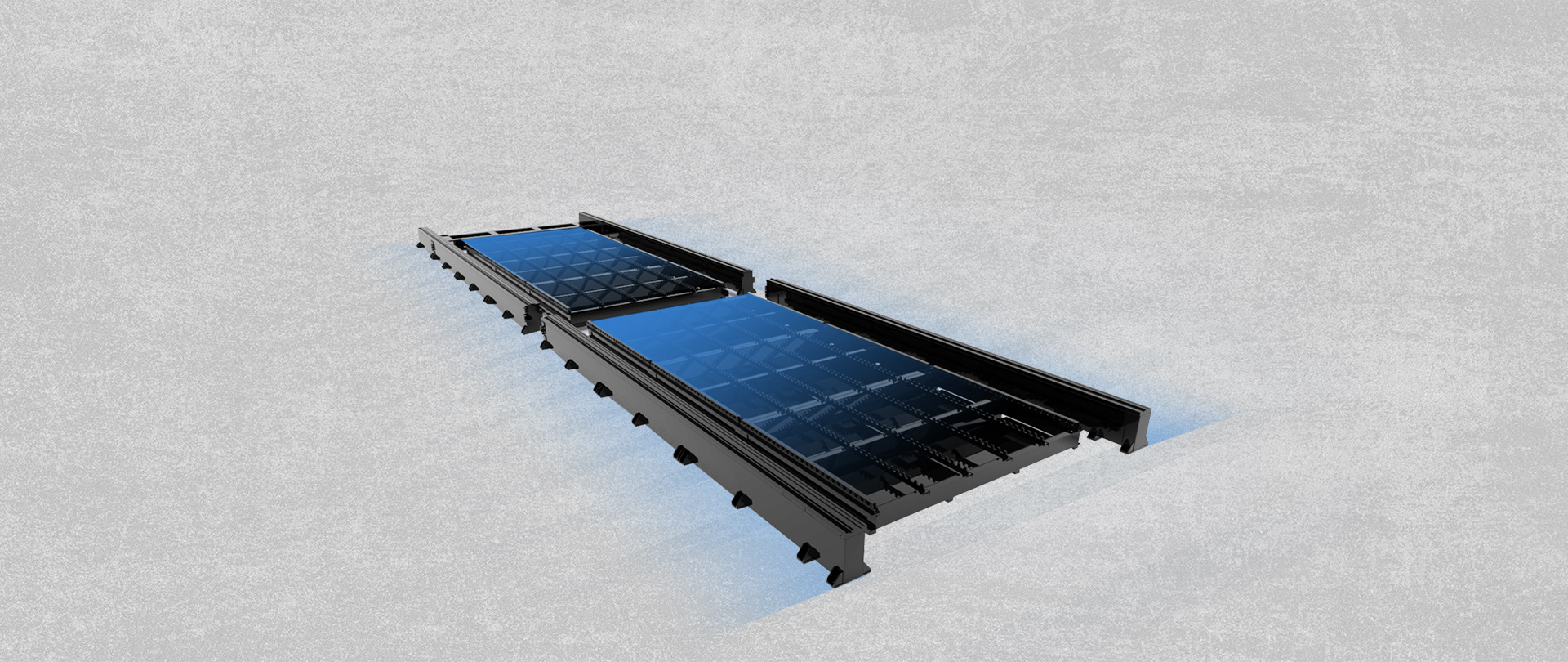

Modular bed
Modular lathe bed realizes customized length as required, and the lathe bed and workbench are designed separately. Large-section rectangular pipes are welded and finished after annealing, which is stable, reliable and convenient for transportation.
Parameter technical
| Model: | XL-4020D | XL-6025D | XL-8030D | XL-12032D | XL-26032D |
| Machine working area (mm) | 4000*2000 | 6000*2500 | 8000*3000 | 12000*3200 | 26000*3200 |
| Laser source: |
MAX /Raycus (Optional) |
||||
| Fiber laser power: |
6kw/12KW/20KW/30KW (Optional) |
||||
| X and Y positioning accuracy : |
±0.03mm |
||||
| Max acceleration : |
1.0G |
||||
| Drive type of X, Y, Z axis: |
Servo motor and driver |
||||
| Power consumption of whole machine : |
< 15KW (< 12KW-1 KW) |
||||
| Rated voltage and frequency : |
380V/50Hz/60Hz |
||||
| Operating temperature: |
0℃-40℃ |
||||
| Control system: |
Cypcut/Raytool |
||||
Cutting Sample Display
Application Industrial
Agricultural machinery, Steel structure fabrication, Transmission towers, Shipyard, Mining machinery, Sheet metal processing, Heavy mechanical equipment, Construction machinery
