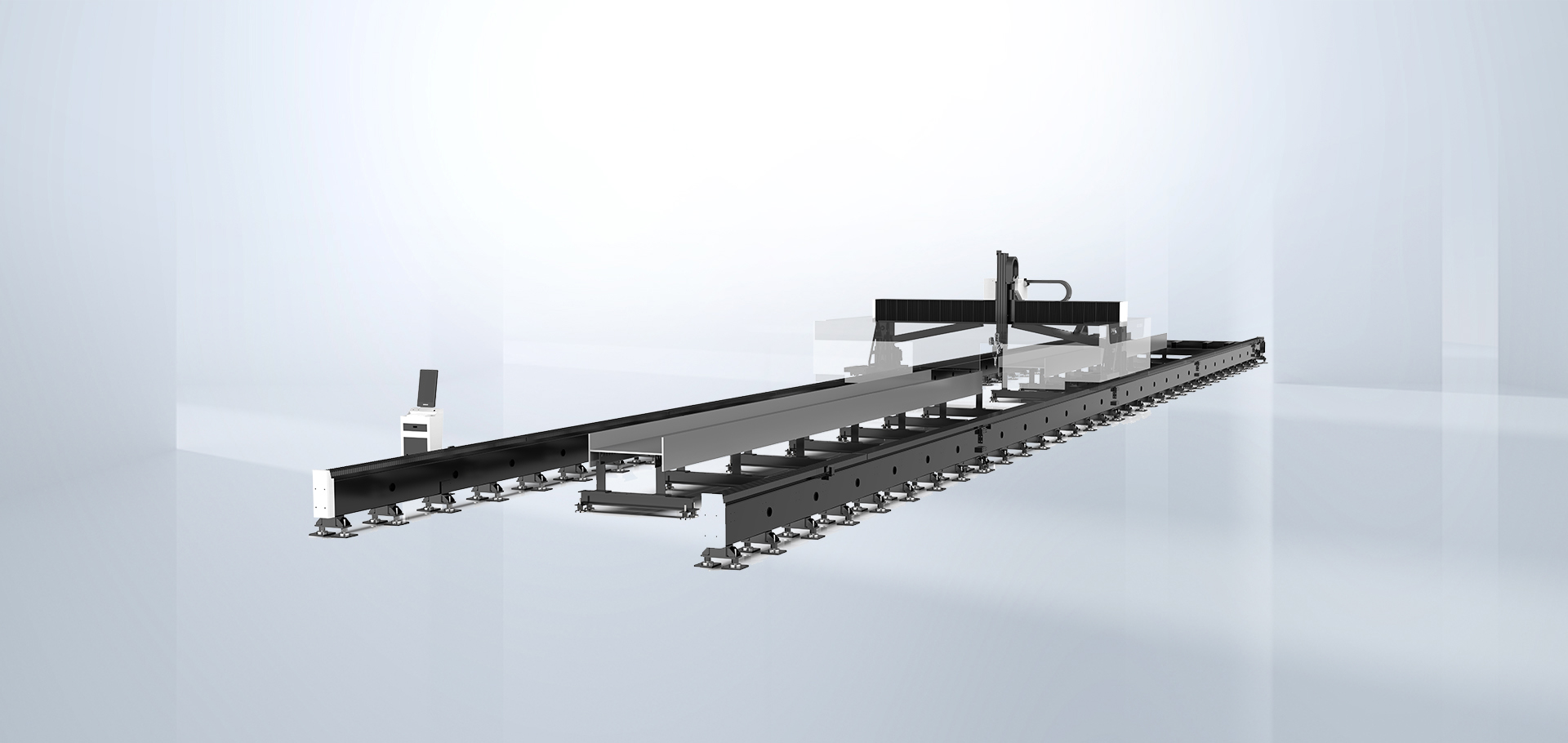

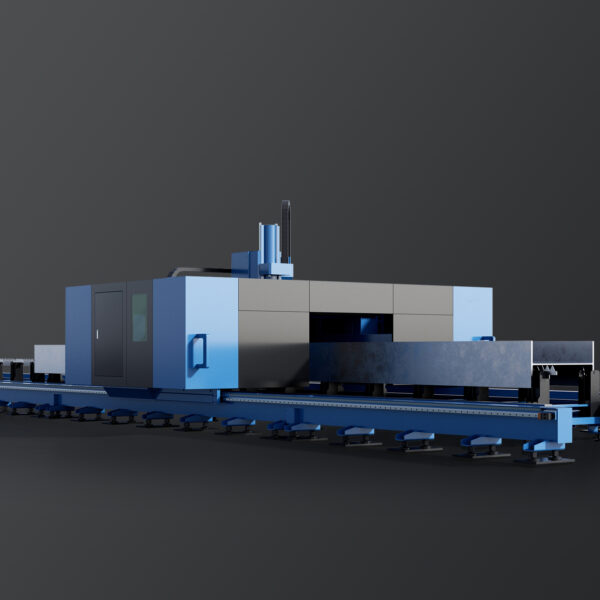

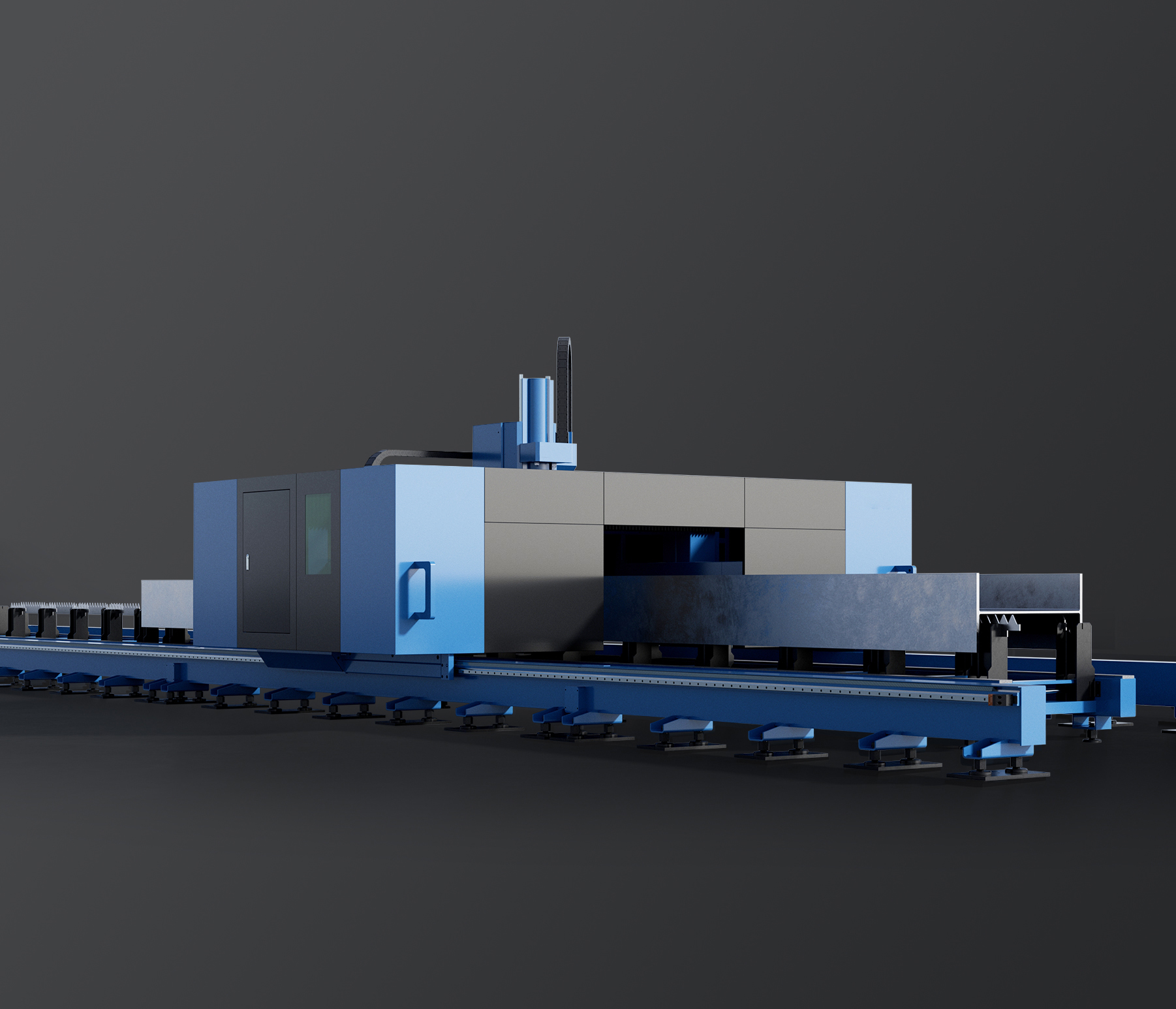

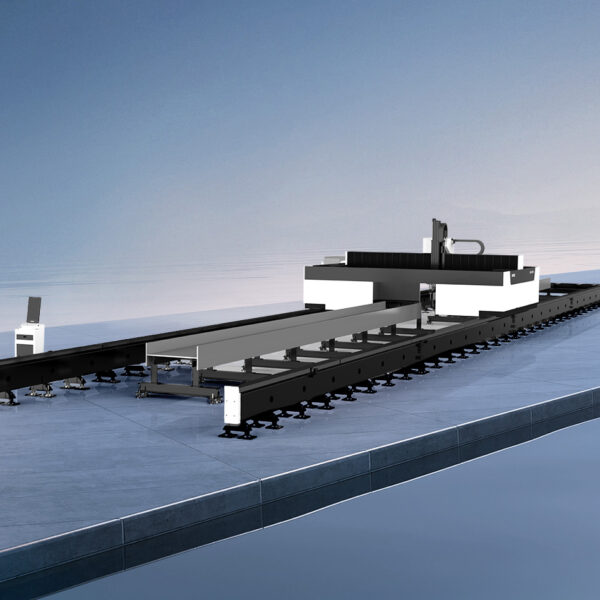

3D 7 axis Metal Profile Laser Cutting machine

The steel fabrication field is still using the traditional manual and semi-automatic material handling methods, and there is an urgent need for an efficient and high quality processing method to improve efficiency and quality, and reduce labor costs. We are committed to providing high efficiency, high precision, and high cost performance automatic processing equipment to solve these problems by providing high precision cutting and significantly reducing. The below machine 3D 7 axis is just the machine which can slove the above problems.

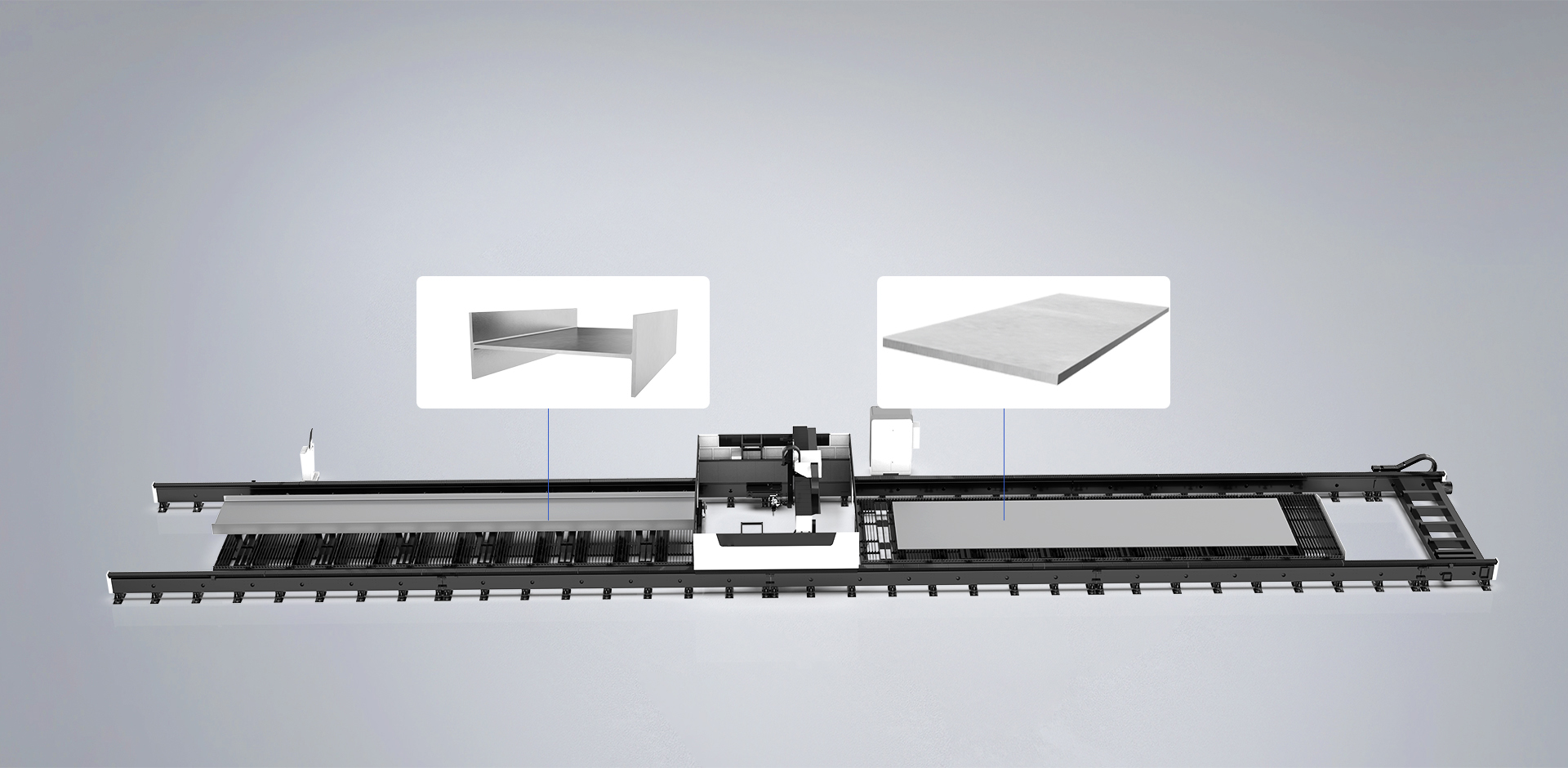

Plate & metal profile Multi-function

Multi- function laser cutting machine ,which can offer plate & metal profile cutting, not only vertical cutting, but also offer bevel cutting 0° to 45°.
Meanwhile this 3D 7 axis metal profile laser cutting machine is multi-function, which can save investments.

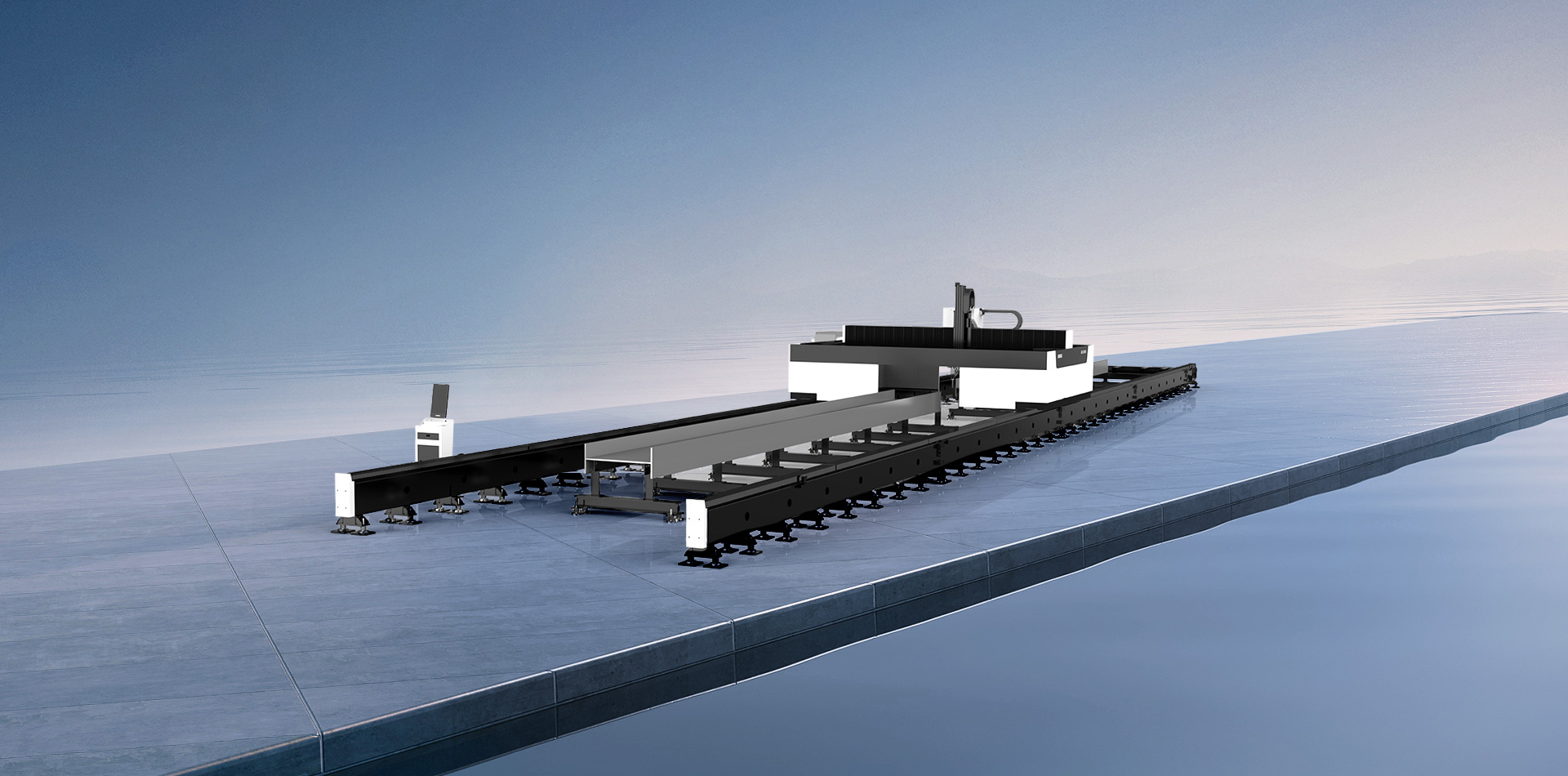

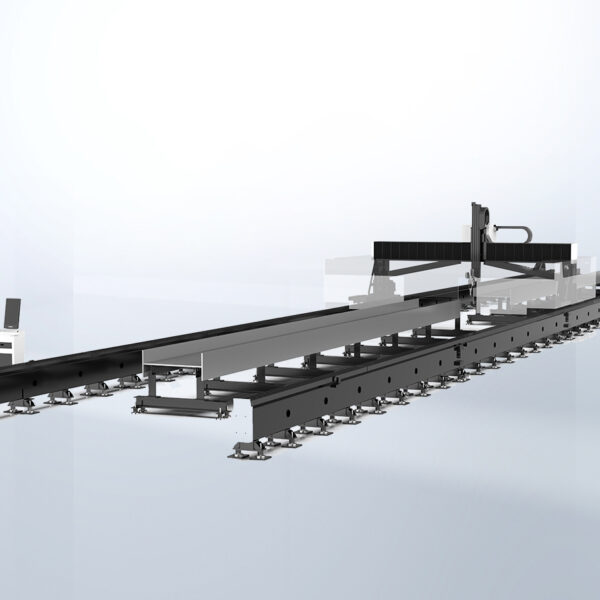

Gantry Bed Structure

Stable and reliable, with better dynamic performance, the gantry’s mobile processing method provides flexible cutting actions

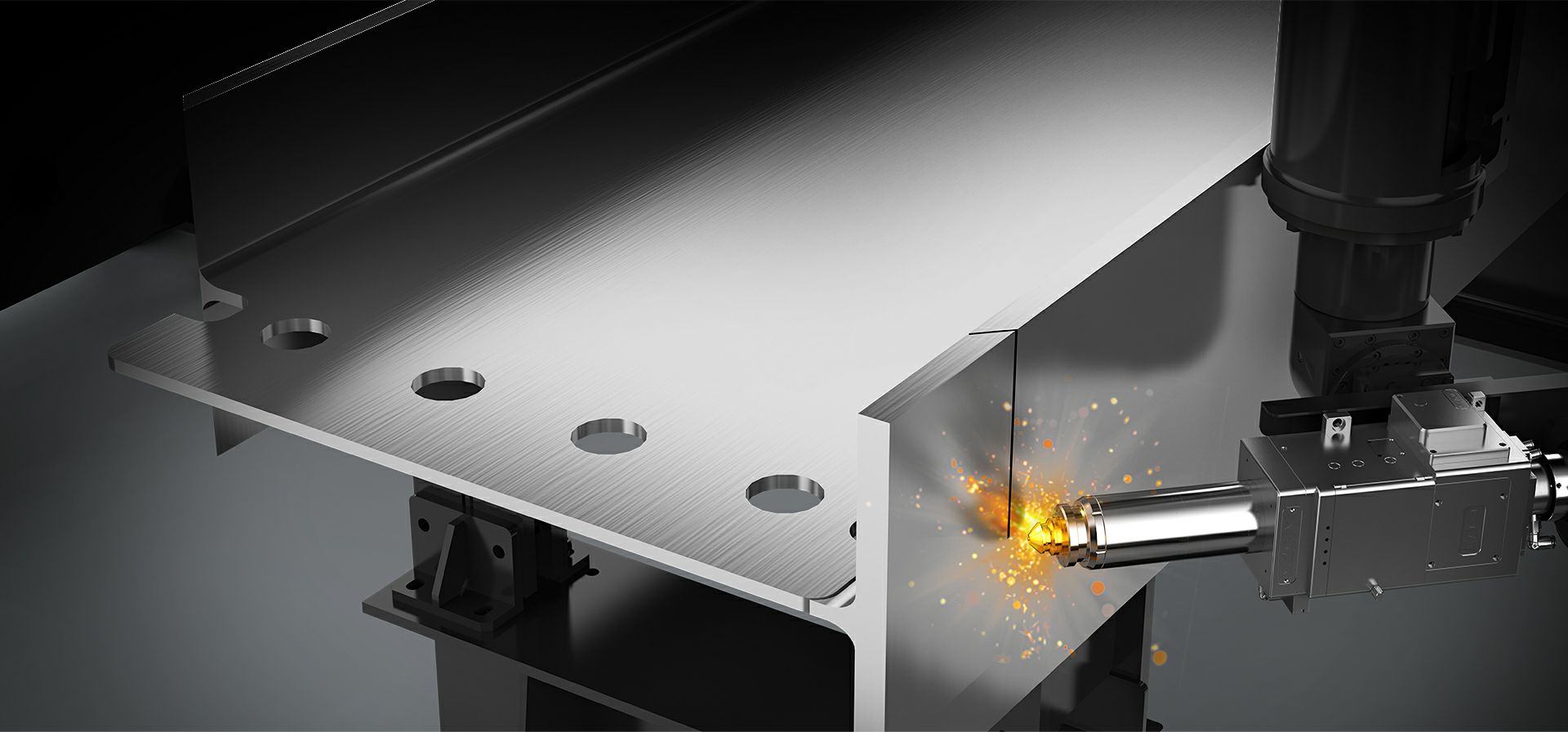

3D 7-axis linkage + large swing axis

Adaptable to various irregular and three-dimensional cutting such as straight cutting, bevel cutting, and half-edge flat cutting.

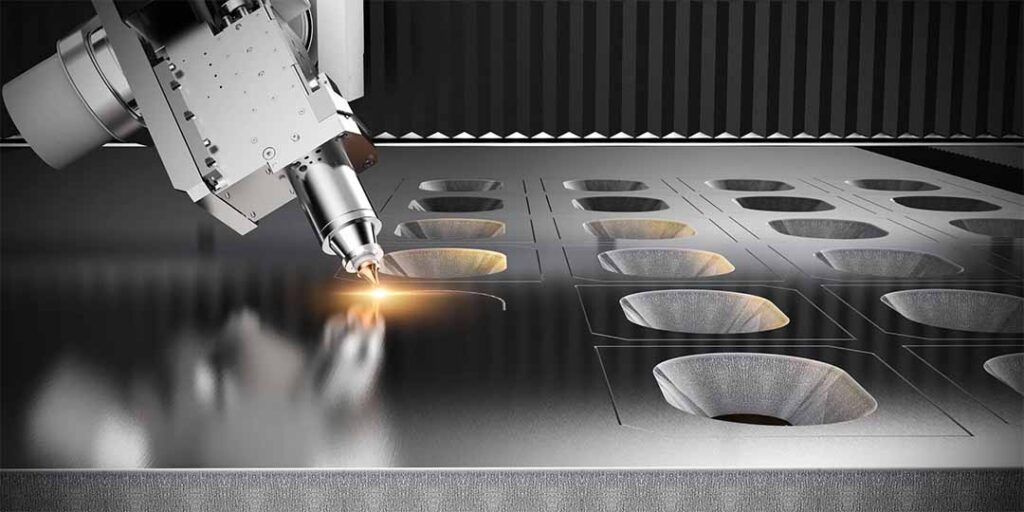

Advantages of Bevel Laser Cutting for Metal

• Enhanced Efficiency: The use of laser bevel cutting technology significantly simplifies the processing workflow, allowing for the precise formation of bevels at angles ranging from 1°~45° in a single operation. This eliminates the need for multiple processes, such as traditional cutting and milling, greatly improving efficiency, ensuring quality, and saving resources while producing high-quality cut parts with excellent dimensional accuracy.

• Improved Surface Quality: Laser cutting provides extremely smooth cutting edges, significantly enhancing the quality of bevel surfaces. Since laser cutting is a non-contact process, it reduces deformation or damage to the workpiece caused by mechanical forces, ensuring clean and smooth cutting surfaces. This contributes to better welding quality and increased durability of the structure.

• Consistent Quality in Mass Production: Laser bevel cutting technology achieves a high degree of consistency in cutting results, particularly in large-scale production environments. By precisely controlling cutting parameters such as power, speed, and gas flow, complex shapes can be cut easily and accurately, ensuring that each product’s bevel dimensions and shapes meet design requirements, thus maintaining overall processing quality stability.

• Reduced Bevel Processing Costs: The integrated cutting process of laser bevel cutting reduces the multiple machining steps required by traditional methods, such as secondary cutting and grinding. This not only saves time and labor costs but also lowers material waste caused by repeated processing.

Technical Parameter

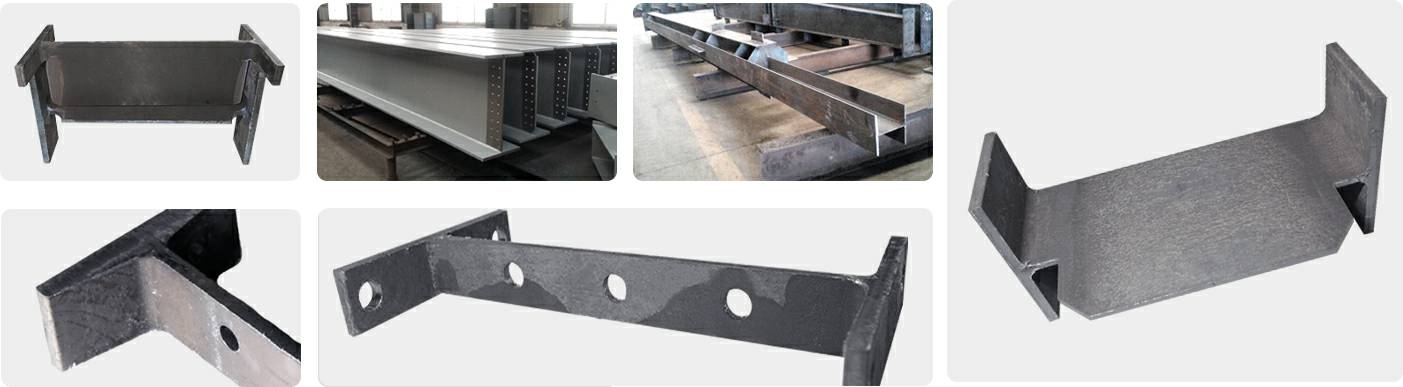

Sample Display

Application Industrial

Steel structure construction, engineering machinery, metal processing, bridge tunnels, vehicle frames, port machinery, shipyard.
